DVFS

Dynamic Voltage Frequency Scaling for a multi-core architecture

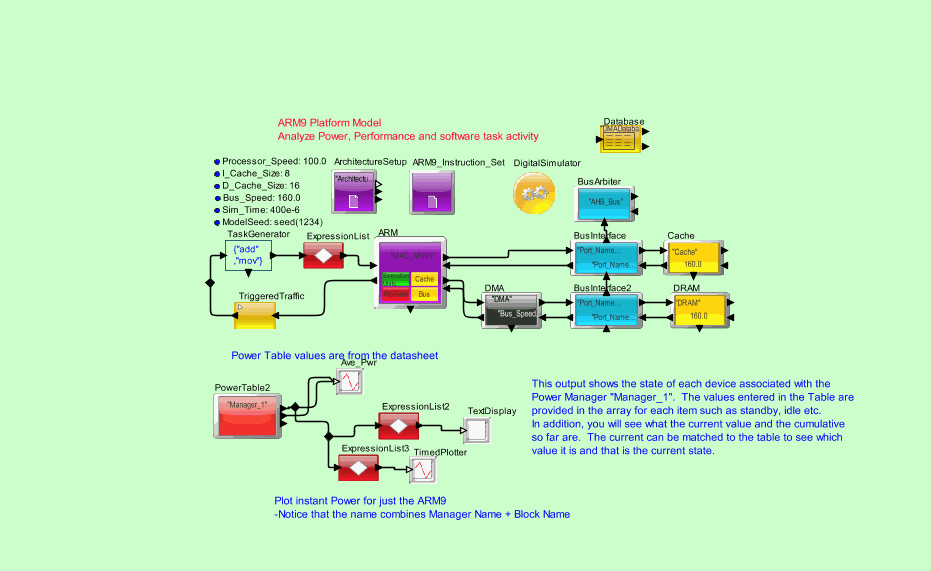

Processor_Power_model

Browsable image of the model.

  • To download OpenWebStart click on the links –
    Windows– Compatibility:Windows 10 or higher (*)
    macOS – Compatibility:macOS 10.15 (Catalina) or higher (*)
    Linux – Compatibility:Ubuntu 18.04 LTS or higher (*)
Launch
  • Mouse over the icons to view parameters. Click on hierarchy and plotters to reveal content (if provided).
  • To simulate, click on Launch button, open downloaded file and click Run on the Java Security Page.
<h2>PowerTable2</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>This is the Excel spreadsheet import. The power \\ninformation is maintained here.</td><td>This is the Excel spreadsheet import. The power \\ninformation is maintained here.</td></tr><tr><td>Manager_Name</td><td>&quot;Manager_1&quot;</td><td>&quot;Manager_1&quot;</td></tr><tr><td>fileOrURL</td><td>&nbsp;</td><td>&quot;&quot;</td></tr><tr><td>Manager_Setup</td><td>/* Power_Table. First row contains Column Names, expressions valid for entries except Device Name. \\n \\n--------Device Name------- ---------Power States------ -----Operating States------ -----------State Transitions--------- --Speed-- --Exist-- */\\n Architecture_Block Standby Active Wait Idle Existing OffState OnState t_OnOff Mhz Volts ; \\nArchitecture_1_MAC_ARM9 75.0 200.0 100.0 100.0 Standby Standby Active 2.0e-9 1000.0 1.0 ; \\nArchitecture_1_AHB_Bus 25.0 100.0 0.0 0.0 Standby Standby Active 2.0e-9 1000.0 1.0 ;\\nArchitecture_1_DRAM 50.0 150.0 0.0 0.0 Standby Standby Active 2.0e-9 1000.0 1.0 ; </td><td>/* Power_Table. First row contains Column Names, expressions valid for entries except Device Name. \\n \\n--------Device Name------- ---------Power States------ -----Operating States------ -----------State Transitions--------- --Speed-- --Exist-- */\\n Architecture_Block Standby Active Wait Idle Existing OffState OnState t_OnOff Mhz Volts ; \\nArchitecture_1_MAC_ARM9 75.0 200.0 100.0 100.0 Standby Standby Active 2.0e-9 1000.0 1.0 ; \\nArchitecture_1_AHB_Bus 25.0 100.0 0.0 0.0 Standby Standby Active 2.0e-9 1000.0 1.0 ;\\nArchitecture_1_DRAM 50.0 150.0 0.0 0.0 Standby Standby Active 2.0e-9 1000.0 1.0 ; </td></tr><tr><td>Async_State_Change</td><td>/* Async_State_Change. First row contains Column Names, expressions valid for entries except Device Name. \\n \\n--------Device Name------- ------------Time State--------- */\\n Architecture_Block State Time_or_Express Next ; \\n</td><td>/* Async_State_Change. First row contains Column Names, expressions valid for entries except Device Name. \\n \\n--------Device Name------- ------------Time State--------- */\\n Architecture_Block State Time_or_Express Next ; \\n</td></tr><tr><td>Expression_List</td><td>/* First row contains Column Names. \\n \\n---------Reference-------- ------------------------------------Expression----------------------------------------------------------------------- */\\n Name Value ; \\n</td><td>/* First row contains Column Names. \\n \\n---------Reference-------- ------------------------------------Expression----------------------------------------------------------------------- */\\n Name Value ; \\n</td></tr><tr><td>Battery_Units</td><td>Milli_Watts</td><td>Milli_Watts</td></tr><tr><td>State_Plot_Enable</td><td>false</td><td>false</td></tr></table> <h2>TextDisplay</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>rowsDisplayed</td><td>10</td><td>10</td></tr><tr><td>columnsDisplayed</td><td>40</td><td>40</td></tr><tr><td>suppressBlankLines</td><td>false</td><td>false</td></tr><tr><td>title</td><td>&quot;My_Title&quot;</td><td>&quot;My_Title&quot;</td></tr><tr><td>ViewText</td><td>true</td><td>true</td></tr><tr><td>saveText</td><td>false</td><td>false</td></tr><tr><td>fileName</td><td>Enter Filename to save text</td><td>&quot;Enter Filename to save text&quot;</td></tr><tr><td>Append_Time</td><td>true</td><td>true</td></tr></table> <h2>ExpressionList3</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Expression_List</td><td>/* Template to enter multiple RegEx lines*/\\n Result_A = powerCurrent(&quot;Manager_1&quot;, &quot;Architecture_1_MAC_ARM9&quot;)\\n\\n/* Add as many RegEx lines are required */\\n</td><td>/* Template to enter multiple RegEx lines*/\\n Result_A = powerCurrent(&quot;Manager_1&quot;, &quot;Architecture_1_MAC_ARM9&quot;)\\n\\n/* Add as many RegEx lines are required */\\n</td></tr><tr><td>Output_Ports</td><td>output</td><td>&quot;output&quot;</td></tr><tr><td>Output_Values</td><td>Result_A</td><td>&quot;Result_A&quot;</td></tr><tr><td>Output_Conditions</td><td>true</td><td>&quot;true&quot;</td></tr></table> <h2>ExpressionList2</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Expression_List</td><td>/* No Expressions. */</td><td>/* No Expressions. */</td></tr><tr><td>Output_Ports</td><td>output</td><td>&quot;output&quot;</td></tr><tr><td>Output_Values</td><td>powerManager(&quot;Manager_1&quot;)</td><td>&quot;powerManager(&quot;Manager_1&quot;)&quot;</td></tr><tr><td>Output_Conditions</td><td>true</td><td>&quot;true&quot;</td></tr></table> <h2>BusArbiter</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Architecture_Name</td><td>&quot;Architecture_1&quot;</td><td>&quot;Architecture_1&quot;</td></tr><tr><td>_explanation</td><td>HardwareDevices-&gt;BusArbiter</td><td>HardwareDevices-&gt;BusArbiter</td></tr><tr><td>Bus_Name</td><td>&quot;AHB_Bus&quot;</td><td>&quot;AHB_Bus&quot;</td></tr><tr><td>Bus_Speed_Mhz</td><td>500.0</td><td>500.0</td></tr><tr><td>Burst_Size_Bytes</td><td>100</td><td>100</td></tr><tr><td>Round_Robin_Port_Array</td><td>{&quot;Port_1&quot;, &quot;Port_2&quot;}</td><td>{&quot;Port_1&quot;, &quot;Port_2&quot;}</td></tr><tr><td>Devices_Attached_to_Slave_by_Port</td><td>{{&quot;Device_1&quot;}, {&quot;Device_2&quot;}, {&quot;Device_3&quot;}, {&quot;Device_4&quot;}, {&quot;Device_5&quot;}, {&quot;Device_6&quot;}, {&quot;Device_7&quot;}, {&quot;Device_8&quot;}}</td><td>{{&quot;Device_1&quot;}, {&quot;Device_2&quot;}, {&quot;Device_3&quot;}, {&quot;Device_4&quot;}, {&quot;Device_5&quot;}, {&quot;Device_6&quot;}, {&quot;Device_7&quot;}, {&quot;Device_8&quot;}}</td></tr><tr><td>Width_Bytes</td><td>4</td><td>4</td></tr><tr><td>Arbiter_Mode</td><td>FCFS</td><td>FCFS</td></tr><tr><td>Split_Retry_Flag</td><td>true</td><td>true</td></tr></table> <h2>ExpressionList</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Expression_List</td><td>input.A_Destination = &quot;MAC_ARM9&quot;\\ninput.A_Hop = &quot;MAC_ARM9&quot;\\ninput.TIME = TNow\\ninput.A_Variables = 3000</td><td>input.A_Destination = &quot;MAC_ARM9&quot;\\ninput.A_Hop = &quot;MAC_ARM9&quot;\\ninput.TIME = TNow\\ninput.A_Variables = 3000</td></tr><tr><td>Output_Ports</td><td>output</td><td>&quot;output&quot;</td></tr><tr><td>Output_Values</td><td>input</td><td>&quot;input&quot;</td></tr><tr><td>Output_Conditions</td><td>true</td><td>&quot;true&quot;</td></tr></table> <h2>TriggeredTraffic</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Data_Structure_Name</td><td>&quot;Processor_DS&quot;</td><td>&quot;Processor_DS&quot;</td></tr><tr><td>_flipPortsHorizontal</td><td>true</td><td>true</td></tr></table> <h2>TimedPlotter</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>fillOnWrapup</td><td>true</td><td>true</td></tr><tr><td>legend</td><td>inst_pow</td><td>inst_pow</td></tr><tr><td>startingDataset</td><td>0</td><td>0</td></tr><tr><td>fileName</td><td>Enter Filename to save plot</td><td>&quot;Enter Filename to save plot&quot;</td></tr><tr><td>viewPlot</td><td>true</td><td>true</td></tr><tr><td>savePlot</td><td>false</td><td>false</td></tr></table> <h2>Cache</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Architecture_Name</td><td>&quot;Architecture_1&quot;</td><td>&quot;Architecture_1&quot;</td></tr><tr><td>Cache_Name</td><td>&quot;Cache&quot;</td><td>&quot;Cache&quot;</td></tr><tr><td>Miss_Memory_Name</td><td>&quot;DRAM&quot;</td><td>&quot;DRAM&quot;</td></tr><tr><td>Cache_Speed_Mhz</td><td>Bus_Speed</td><td>160.0</td></tr><tr><td>Cache_Size_KBytes</td><td>64.0</td><td>64.0</td></tr><tr><td>Width_Bytes</td><td>4</td><td>4</td></tr><tr><td>Words_per_Cache_Line</td><td>16</td><td>16</td></tr><tr><td>FIFO_Buffers</td><td>32</td><td>32</td></tr><tr><td>Cache_Address</td><td>&quot;/* Format: Min_Address,Max_Address. Example:100,200 */&quot;</td><td>&quot;/* Format: Min_Address,Max_Address. Example:100,200 */&quot;</td></tr><tr><td>Cache_Hit_Expression</td><td>&quot;rand(0.0,1.0) &lt;= 0.95&quot;</td><td>&quot;rand(0.0,1.0) &lt;= 0.95&quot;</td></tr><tr><td>Enable_Hello_Messages</td><td>true</td><td>true</td></tr></table> <h2>Database</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>*.xml, *.csv files abs or rel (./) path\\n -- *.csv real columns set to number\\nInput_Fields == Lookup_Fields (num, type)\\nOutput_Expr: match, match_last, match_all\\n -- match_all.field not allowed</td><td>*.xml, *.csv files abs or rel (./) path\\n -- *.csv real columns set to number\\nInput_Fields == Lookup_Fields (num, type)\\nOutput_Expr: match, match_last, match_all\\n -- match_all.field not allowed</td></tr><tr><td>Linking_Name</td><td>&quot;DMADatabase&quot;</td><td>&quot;DMADatabase&quot;</td></tr><tr><td>fileOrURL</td><td>&nbsp;</td><td>&quot;&quot;</td></tr><tr><td>Data_Structure_Text</td><td>A_Task_Name\tA_Instruction\tA_IDX\tA_Task_Source\tBurst_Word_Size\tA_Task_Address A_Command\tA_Bytes\tA_Priority\tA_Destination \\nMy_Task_1\t LD_LDR\t 0\t DRAM\t 32\t 1 Read\t 128\t0\t DMA \\nMy_Task_2\t LD_LDR\t 0\t DRAM\t 32\t 1 Write\t128\t1\t DMA \\nMy_Task_3\t LD_LDR\t 0\t DRAM\t 32\t 2 Write\t128\t3\t DMA \\n\\n</td><td>A_Task_Name\tA_Instruction\tA_IDX\tA_Task_Source\tBurst_Word_Size\tA_Task_Address A_Command\tA_Bytes\tA_Priority\tA_Destination \\nMy_Task_1\t LD_LDR\t 0\t DRAM\t 32\t 1 Read\t 128\t0\t DMA \\nMy_Task_2\t LD_LDR\t 0\t DRAM\t 32\t 1 Write\t128\t1\t DMA \\nMy_Task_3\t LD_LDR\t 0\t DRAM\t 32\t 2 Write\t128\t3\t DMA \\n\\n</td></tr><tr><td>Input_Fields</td><td>&quot;ID&quot;</td><td>&quot;ID&quot;</td></tr><tr><td>Lookup_Fields</td><td>&quot;ID&quot;</td><td>&quot;ID&quot;</td></tr><tr><td>Output_Expression</td><td>&quot;output = match&quot; /* FORMAT output = match.fieldb */</td><td>&quot;output = match&quot;</td></tr><tr><td>Mode</td><td>Read</td><td>Read</td></tr></table> <h2>DMA</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Architecture_Name</td><td>&quot;Architecture_1&quot;</td><td>&quot;Architecture_1&quot;</td></tr><tr><td>DMA_Controller_Name</td><td>&quot;DMA&quot;</td><td>&quot;DMA&quot;</td></tr><tr><td>Memory_Database_Reference</td><td>&quot;DMADatabase&quot;</td><td>&quot;DMADatabase&quot;</td></tr><tr><td>DMA_to_Device_Cycles</td><td>1</td><td>&quot;1&quot;</td></tr><tr><td>DMA_to_Device_Address</td><td>DS_Fld_Name_or_Integer</td><td>&quot;DS_Fld_Name_or_Integer&quot;</td></tr><tr><td>Device_to_DMA_Cycles</td><td>1</td><td>&quot;1&quot;</td></tr><tr><td>Channel_FIFO_Buffers</td><td>10</td><td>&quot;10&quot;</td></tr><tr><td>Speed_Mhz</td><td>Bus_Speed</td><td>&quot;Bus_Speed&quot;</td></tr><tr><td>DMA_Channels</td><td>2</td><td>2</td></tr><tr><td>Width_Bytes</td><td>4</td><td>4</td></tr></table> <h2>BusInterface2</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Architecture_Name</td><td>&quot;Architecture_1&quot;</td><td>&quot;Architecture_1&quot;</td></tr><tr><td>Bus_Name</td><td>&quot;AHB_Bus&quot;</td><td>&quot;AHB_Bus&quot;</td></tr><tr><td>Port_Name_1</td><td>&quot;Port_Name_3&quot;</td><td>&quot;Port_Name_3&quot;</td></tr><tr><td>Port_Name_2</td><td>&quot;Port_Name_4&quot;</td><td>&quot;Port_Name_4&quot;</td></tr><tr><td>FIFO_Buffers</td><td>8</td><td>8</td></tr><tr><td>Enable_Hello_Messages</td><td>true</td><td>true</td></tr></table> <h2>Ave_Pwr</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>fillOnWrapup</td><td>true</td><td>true</td></tr><tr><td>legend</td><td>Instant</td><td>Instant</td></tr><tr><td>startingDataset</td><td>0</td><td>0</td></tr><tr><td>fileName</td><td>Enter Filename to save plot</td><td>&quot;Enter Filename to save plot&quot;</td></tr><tr><td>viewPlot</td><td>true</td><td>true</td></tr><tr><td>savePlot</td><td>false</td><td>false</td></tr></table> <h2>BusInterface</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Architecture_Name</td><td>&quot;Architecture_1&quot;</td><td>&quot;Architecture_1&quot;</td></tr><tr><td>Bus_Name</td><td>&quot;AHB_Bus&quot;</td><td>&quot;AHB_Bus&quot;</td></tr><tr><td>Port_Name_1</td><td>&quot;Port_Name_1&quot;</td><td>&quot;Port_Name_1&quot;</td></tr><tr><td>Port_Name_2</td><td>&quot;Port_Name_2&quot;</td><td>&quot;Port_Name_2&quot;</td></tr><tr><td>FIFO_Buffers</td><td>8</td><td>8</td></tr><tr><td>Enable_Hello_Messages</td><td>true</td><td>true</td></tr></table> <h2>ARM9_Instruction_Set</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>This is the Instruction Set for ARM9 : Reference ARM TRM manual. \\n</td><td>This is the Instruction Set for ARM9 : Reference ARM TRM manual. \\n</td></tr><tr><td>Instruction_Set_Name</td><td>&quot;ARM_INSTR&quot;</td><td>&quot;ARM_INSTR&quot;</td></tr><tr><td>_explanation</td><td>ProcessorGenerator-&gt;Instruction_Set</td><td>ProcessorGenerator-&gt;Instruction_Set</td></tr><tr><td>Instruction_Set_Text</td><td>/* Instruction Set : Reference ARM TRM manual. */\\n\\n Mnew Ra Rb Rc Rd Re Rf Rg Rh; /* Label */\\n ARM EXEC ; /* one execution unit */\\n EXEC INT_1 ; /* ARM execution unit */\\n\\nbegin INT_1 ;\\n MV_MOV 1 4 ; /* group MOVE */\\n MV_MVN 1 4 ;\\n MV_MRS 1 2 ;\\n MV_MSR 3 ;\\n\\n ART_ADD 1 4 ; /* group ARITHMETIC */\\n ART_ADC 1 4 ;\\n ART_SUB 1 4 ;\\n ART_SBC 1 4 ;\\n ART_RSB 1 4 ;\\n ART_RSC 1 4 ;\\n ART_MUL 2 3 ;\\n ART_MLA 2 3 ;\\n ART_MULS 4 ;\\n ART_MLAS 4 ;\\n ART_UMULL 3 4 ;\\n ART_UMLAL 3 4 ;\\n ART_SMULL 3 4 ;\\n ART_SMLAL 3 4 ;\\n ART_UMULLS 5 ;\\n ART_UMLALS 5 ;\\n ART_SMULLS 5 ;\\n ART_SMLALS 5 ;\\n ART_CMP 1 4 ;\\n ART_CMN 1 4 ;\\n ART_QADD 1 2 ;\\n ART_QSUB 1 2 ;\\n ART_SMULXY 1 ;\\n ART_SMULAXY 2 ;\\n ART_SMULWX 1 ;\\n ART_SMULAWX 2 ;\\n ART_SMULALX 2 3 ;\\n ART_CLZ 1 ;\\n\\n LGL_TST 1 4 ; /* group LOGICAL */\\n LGL_TEQ 1 4 ;\\n LGL_AND 1 4 ;\\n LGL_EOR 1 4 ;\\n LGL_ORR 1 4 ;\\n LGL_BIC 1 4 ;\\n\\n *BR_B 3 ; /* group LOGICAL */\\n BR_BL 3 ; \\n BR_BX 3 ;\\n BR_BLX 3 ;\\n\\n #LD_LDR 1 5 ; /* group LOAD */\\n LD_LDRT 1 5 ; \\n LD_LDRB 1 5 ; \\n LD_LDRBT 1 5 ; \\n LD_LDRSB 1 5 ; \\n LD_LDRH 1 5 ; \\n LD_LDRSH 1 5 ; \\n LD_LDM_PC 5 ; \\n LD_LDM 1 12 ; /* number of registers */\\n\\n STR_STR 1 ; /* group STORE */\\n STR_STRT 1 ; \\n STR_STRB 1 ; \\n STR_STRBT 1 ; \\n STR_STRH 1 ;\t\\n STR_STM_PC 1 2 ;\\n STR_STM 1 12 ; /* number of registers */\\n\\n MISC_SWP 3 ; /* group MISCELLANEOUS */\\n MISC_SWI 3 ; \\n MISC_BKPT 3 ; \\n\\nend INT_1 ;</td><td>/* Instruction Set : Reference ARM TRM manual. */\\n\\n Mnew Ra Rb Rc Rd Re Rf Rg Rh; /* Label */\\n ARM EXEC ; /* one execution unit */\\n EXEC INT_1 ; /* ARM execution unit */\\n\\nbegin INT_1 ;\\n MV_MOV 1 4 ; /* group MOVE */\\n MV_MVN 1 4 ;\\n MV_MRS 1 2 ;\\n MV_MSR 3 ;\\n\\n ART_ADD 1 4 ; /* group ARITHMETIC */\\n ART_ADC 1 4 ;\\n ART_SUB 1 4 ;\\n ART_SBC 1 4 ;\\n ART_RSB 1 4 ;\\n ART_RSC 1 4 ;\\n ART_MUL 2 3 ;\\n ART_MLA 2 3 ;\\n ART_MULS 4 ;\\n ART_MLAS 4 ;\\n ART_UMULL 3 4 ;\\n ART_UMLAL 3 4 ;\\n ART_SMULL 3 4 ;\\n ART_SMLAL 3 4 ;\\n ART_UMULLS 5 ;\\n ART_UMLALS 5 ;\\n ART_SMULLS 5 ;\\n ART_SMLALS 5 ;\\n ART_CMP 1 4 ;\\n ART_CMN 1 4 ;\\n ART_QADD 1 2 ;\\n ART_QSUB 1 2 ;\\n ART_SMULXY 1 ;\\n ART_SMULAXY 2 ;\\n ART_SMULWX 1 ;\\n ART_SMULAWX 2 ;\\n ART_SMULALX 2 3 ;\\n ART_CLZ 1 ;\\n\\n LGL_TST 1 4 ; /* group LOGICAL */\\n LGL_TEQ 1 4 ;\\n LGL_AND 1 4 ;\\n LGL_EOR 1 4 ;\\n LGL_ORR 1 4 ;\\n LGL_BIC 1 4 ;\\n\\n *BR_B 3 ; /* group LOGICAL */\\n BR_BL 3 ; \\n BR_BX 3 ;\\n BR_BLX 3 ;\\n\\n #LD_LDR 1 5 ; /* group LOAD */\\n LD_LDRT 1 5 ; \\n LD_LDRB 1 5 ; \\n LD_LDRBT 1 5 ; \\n LD_LDRSB 1 5 ; \\n LD_LDRH 1 5 ; \\n LD_LDRSH 1 5 ; \\n LD_LDM_PC 5 ; \\n LD_LDM 1 12 ; /* number of registers */\\n\\n STR_STR 1 ; /* group STORE */\\n STR_STRT 1 ; \\n STR_STRB 1 ; \\n STR_STRBT 1 ; \\n STR_STRH 1 ;\t\\n STR_STM_PC 1 2 ;\\n STR_STM 1 12 ; /* number of registers */\\n\\n MISC_SWP 3 ; /* group MISCELLANEOUS */\\n MISC_SWI 3 ; \\n MISC_BKPT 3 ; \\n\\nend INT_1 ;</td></tr><tr><td>Record_Set_Name</td><td>&quot;Record_Set_Name&quot;</td><td>&quot;Record_Set_Name&quot;</td></tr><tr><td>Memory_Type</td><td>Global</td><td>Global</td></tr></table> <h2>TaskGenerator</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Name</td><td>&quot;My_SoftGen&quot;</td><td>&quot;My_SoftGen&quot;</td></tr><tr><td>Mode_of_Operation</td><td>&quot;Loop&quot; /* Field gets input, Random selects a Task, Loop is sequential */</td><td>&quot;Loop&quot;</td></tr><tr><td>DEBUG</td><td>false /* To Debug Port */</td><td>false</td></tr><tr><td>_explanation</td><td>ProcessorGenerator-&gt;TaskGenerator</td><td>ProcessorGenerator-&gt;TaskGenerator</td></tr><tr><td>Sim_Time</td><td>Sim_Time</td><td>4.0E-4</td></tr><tr><td>Instruction_Mix_File</td><td>&nbsp;</td><td>&quot;&quot;</td></tr><tr><td>My_Path</td><td>VS + &quot;/demo/Power&quot;</td><td>&quot;C:\\VisualSim\\Tool\\VisualSim18_64\\VS_AR/demo/Power&quot;</td></tr><tr><td>Read_My_Instruction_Mix_Table</td><td>My_Path + &quot;/Instruction_Mix_Table.txt&quot; /* Input file name */</td><td>&quot;C:\\VisualSim\\Tool\\VisualSim18_64\\VS_AR/demo/Power/Instruction_Mix_Table.txt&quot;</td></tr></table> <h2>DRAM</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Architecture_Name</td><td>&quot;Architecture_1&quot;</td><td>&quot;Architecture_1&quot;</td></tr><tr><td>Memory_Name</td><td>&quot;DRAM&quot;</td><td>&quot;DRAM&quot;</td></tr><tr><td>Memory_Speed_Mhz</td><td>Bus_Speed</td><td>160.0</td></tr><tr><td>Memory_Size_MBytes</td><td>64.0</td><td>64.0</td></tr><tr><td>Access_Time</td><td>&quot;Read 4.0, Prefetch 6.0, Write 4.0, ReadWrite 4.0, Erase 9.0&quot;</td><td>&quot;Read 4.0, Prefetch 6.0, Write 4.0, ReadWrite 4.0, Erase 9.0&quot;</td></tr><tr><td>FIFO_Buffers</td><td>8</td><td>8</td></tr><tr><td>Refresh_Rate_Cycles</td><td>16384</td><td>16384</td></tr><tr><td>Refresh_Cycles</td><td>32</td><td>32</td></tr><tr><td>Memory_Address</td><td>&quot;/* Format: Min_Address,Max_Address. Example:201,300 */&quot;</td><td>&quot;/* Format: Min_Address,Max_Address. Example:201,300 */&quot;</td></tr><tr><td>Controller_Time</td><td>&quot;Cycle_Time&quot;</td><td>&quot;Cycle_Time&quot;</td></tr><tr><td>Enable_Hello_Messages</td><td>true</td><td>true</td></tr><tr><td>Width_Bytes</td><td>2</td><td>2</td></tr><tr><td>Memory_Type</td><td>DDR</td><td>DDR</td></tr></table> <h2>ArchitectureSetup</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Architecture_Name</td><td>&quot;Architecture_1&quot;</td><td>&quot;Architecture_1&quot;</td></tr><tr><td>Field_Name_Mapping</td><td>/* First row contains Column Names. */\\nExternal_Field_Name Internal_Field_Name ; \\nA_Address A_Address ; \\nA_Bytes A_Bytes ; \\nA_Data A_Data ; \\nA_IDX A_IDX ; \\nA_Instruction A_Instruction ; \\nA_Priority A_Priority ; \\nA_Source A_Source ; \\nA_Destination A_Destination ; \\nA_Task_ID A_Task_ID ; \\nA_Time A_Time ; \\n</td><td>/* First row contains Column Names. */\\nExternal_Field_Name Internal_Field_Name ; \\nA_Address A_Address ; \\nA_Bytes A_Bytes ; \\nA_Data A_Data ; \\nA_IDX A_IDX ; \\nA_Instruction A_Instruction ; \\nA_Priority A_Priority ; \\nA_Source A_Source ; \\nA_Destination A_Destination ; \\nA_Task_ID A_Task_ID ; \\nA_Time A_Time ; \\n</td></tr><tr><td>Routing_Table</td><td>/* First row contains Column Names. */\\n</td><td>/* First row contains Column Names. */\\n</td></tr><tr><td>Number_of_Samples</td><td>35</td><td>35</td></tr><tr><td>Statistics_to_Plot</td><td>&quot;MAC_ARM9_PROC_Utilization_Pct_Min, MAC_ARM9_PROC_Utilization_Pct_Mean, MAC_ARM9_PROC_Utilization_Pct_Max, MAC_ARM9_I_1_Hit_Ratio_Mean&quot;</td><td>&quot;MAC_ARM9_PROC_Utilization_Pct_Min, MAC_ARM9_PROC_Utilization_Pct_Mean, MAC_ARM9_PROC_Utilization_Pct_Max, MAC_ARM9_I_1_Hit_Ratio_Mean&quot;</td></tr><tr><td>Internal_Plot_Trace_Offset</td><td>2</td><td>2</td></tr><tr><td>Listen_to_Architecture_Options</td><td>None</td><td>None</td></tr></table> <h2>ARM</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Mapping of ARM9 CPU architecture parameters to generic CPU\\nPlease NOTE that this is not goldenized and is only for Demo purpose.\\n</td><td>Mapping of ARM9 CPU architecture parameters to generic CPU\\nPlease NOTE that this is not goldenized and is only for Demo purpose.\\n</td></tr><tr><td>Architecture_Name</td><td>&quot;Architecture_1&quot;</td><td>&quot;Architecture_1&quot;</td></tr><tr><td>Processor_Name</td><td>&quot;MAC_ARM9&quot;</td><td>&quot;MAC_ARM9&quot;</td></tr><tr><td>Processor_Setup</td><td>/* First row contains Column Names. */\\nParameter_Name Parameter_Value ;\\nProcessor_Instruction_Set: ARM_INSTR\\nNumber_of_Registers: 16 /* active registers being processed. total reg = 31 */\\nProcessor_Speed_Mhz: Processor_Speed\\nContext_Switch_Cycles: 200 /* switch between internal pipeline stages */\\nInstruction_Queue_Length: 3 /* This cab be assumed. Real ARM data ? */\\nNumber_of_Pipeline_Stages: 5 /* after 5\\'th stage is implemeted */\\nNumber_of_INT_Execution_Units: 1 /* 1 exection unit 1 coproc unit */\\nNumber_of_FP_Execution_Units: 0 /* no particular FP units */\\nMemory_Database_Reference: DMADatabase\\nNumber_of_Cache_Execution_Units: 2 /* I-cache and D-cache */\\nI_1: {Cache_Speed_Mhz=Processor_Speed, Size_KBytes=I_Cache_Size, Words_per_Cache_Line=8, Cache_Miss_Name=Cache} \\nD_1: {Cache_Speed_Mhz=Processor_Speed, Size_KBytes=D_Cache_Size, Words_per_Cache_Line=8, Cache_Miss_Name=Cache} </td><td>/* First row contains Column Names. */\\nParameter_Name Parameter_Value ;\\nProcessor_Instruction_Set: ARM_INSTR\\nNumber_of_Registers: 16 /* active registers being processed. total reg = 31 */\\nProcessor_Speed_Mhz: Processor_Speed\\nContext_Switch_Cycles: 200 /* switch between internal pipeline stages */\\nInstruction_Queue_Length: 3 /* This cab be assumed. Real ARM data ? */\\nNumber_of_Pipeline_Stages: 5 /* after 5\\'th stage is implemeted */\\nNumber_of_INT_Execution_Units: 1 /* 1 exection unit 1 coproc unit */\\nNumber_of_FP_Execution_Units: 0 /* no particular FP units */\\nMemory_Database_Reference: DMADatabase\\nNumber_of_Cache_Execution_Units: 2 /* I-cache and D-cache */\\nI_1: {Cache_Speed_Mhz=Processor_Speed, Size_KBytes=I_Cache_Size, Words_per_Cache_Line=8, Cache_Miss_Name=Cache} \\nD_1: {Cache_Speed_Mhz=Processor_Speed, Size_KBytes=D_Cache_Size, Words_per_Cache_Line=8, Cache_Miss_Name=Cache} </td></tr><tr><td>Pipeline_Stages</td><td>/* Pipeline stages in ARM */\\nStage_Name Execution_Location Action Condition ; \\n1_FETCH I_1 instr none ; /* Fetch */\\n2_DECODE I_1 wait none ; /* Decode */\\n3_EXECUTE ARM exec none ; /* Execute ARM instr */\\n4_MEMORY ARM wait none ; /* Wait for ARM instr */\\n4_MEMORY D_1 write none ; /* Write */\\n4_MEMORY D_1 read none ; /* Read */\\n5_WRITE_BACK D_1 wait none ; /* Wait for Mem transaction */</td><td>/* Pipeline stages in ARM */\\nStage_Name Execution_Location Action Condition ; \\n1_FETCH I_1 instr none ; /* Fetch */\\n2_DECODE I_1 wait none ; /* Decode */\\n3_EXECUTE ARM exec none ; /* Execute ARM instr */\\n4_MEMORY ARM wait none ; /* Wait for ARM instr */\\n4_MEMORY D_1 write none ; /* Write */\\n4_MEMORY D_1 read none ; /* Read */\\n5_WRITE_BACK D_1 wait none ; /* Wait for Mem transaction */</td></tr><tr><td>Enable_Hello_Messages</td><td>true</td><td>true</td></tr><tr><td>Processor_Bits</td><td>32</td><td>32</td></tr></table>

This model introduces the user to the Power Table in VisualSIm. This links the standard hardware blocks with the power table using the default set of states. It also shows the use of the RFegEx function- powerManager(“Manager_1”) to capture all the statistics of all the devices. At the same the powerCurrent RegEx function generates the statistics for a single block.
