Nvidia

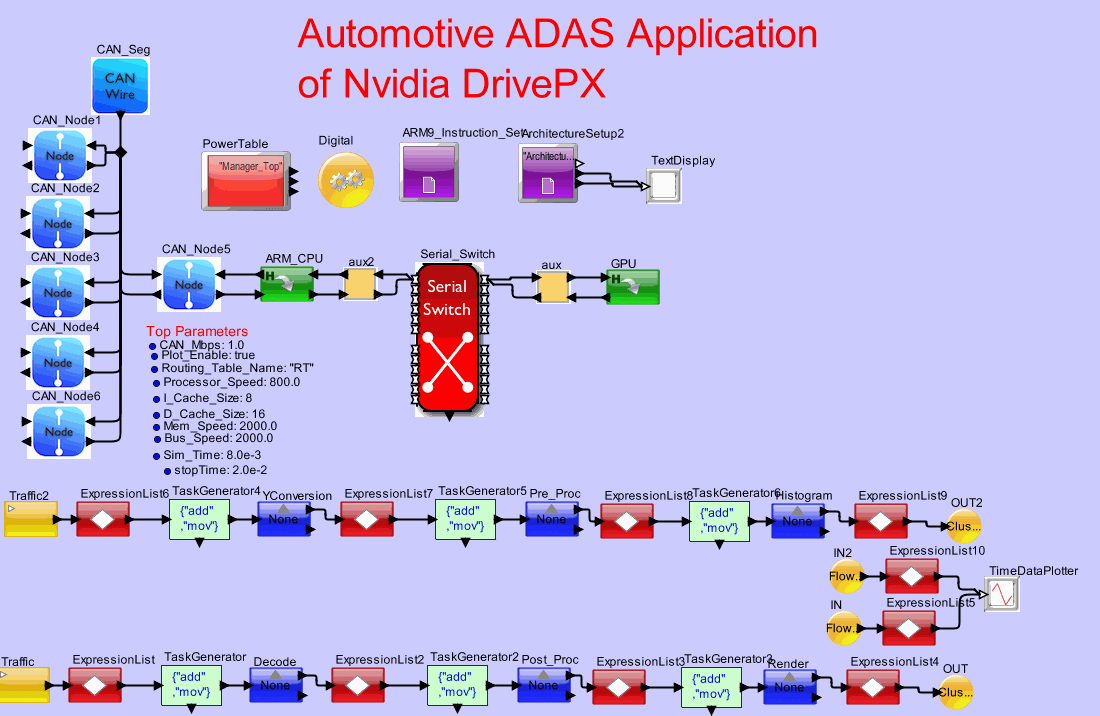

Drive-PX modeled with a CAN Network that is sending 4 Radar signals and 2 camera signals. The Drive-PX is modeled with the 4 ARM A72, 2 Denver and the GPU

Drive_PX_SoC_GPU

Browsable image of the model.

  • To download OpenWebStart click on the links –
    Windows– Compatibility:Windows 10 or higher (*)
    macOS – Compatibility:macOS 10.15 (Catalina) or higher (*)
    Linux – Compatibility:Ubuntu 18.04 LTS or higher (*)
Launch
  • Mouse over the icons to view parameters. Click on hierarchy and plotters to reveal content (if provided).
  • To simulate, click on Launch button, open downloaded file and click Run on the Java Security Page.
<h2>CAN_Node5</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>_explanation</td><td>Interfaces and Buses-&gt;CAN-&gt;CAN_Node</td><td>Interfaces and Buses-&gt;CAN-&gt;CAN_Node</td></tr><tr><td>CAN_Bus_Name</td><td>&quot;CAN1&quot;</td><td>&quot;CAN1&quot;</td></tr><tr><td>Node_Name</td><td>&quot;ECU5&quot;</td><td>&quot;ECU5&quot;</td></tr><tr><td>Enable_Sensor_DB</td><td>false</td><td>false</td></tr><tr><td>Enable_Sensor_Random</td><td>true /* false: sequential */</td><td>true</td></tr><tr><td>Packet_Error_Mbps</td><td>0.0 /* 0.0 disables */</td><td>0.0</td></tr><tr><td>_flipPortsVertical</td><td>true</td><td>true</td></tr><tr><td>_flipPortsHorizontal</td><td>false</td><td>false</td></tr><tr><td>_rotatePorts</td><td>180</td><td>180</td></tr></table> <h2>CAN_Node6</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>_explanation</td><td>Interfaces and Buses-&gt;CAN-&gt;CAN_Node</td><td>Interfaces and Buses-&gt;CAN-&gt;CAN_Node</td></tr><tr><td>CAN_Bus_Name</td><td>&quot;CAN1&quot;</td><td>&quot;CAN1&quot;</td></tr><tr><td>Node_Name</td><td>&quot;ECU6&quot;</td><td>&quot;ECU6&quot;</td></tr><tr><td>Enable_Sensor_DB</td><td>true</td><td>true</td></tr><tr><td>Enable_Sensor_Random</td><td>true /* false: sequential */</td><td>true</td></tr><tr><td>Packet_Error_Mbps</td><td>0.0 /* 0.0 disables */</td><td>0.0</td></tr></table> <h2>CAN_Node4</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>_explanation</td><td>Interfaces and Buses-&gt;CAN-&gt;CAN_Node</td><td>Interfaces and Buses-&gt;CAN-&gt;CAN_Node</td></tr><tr><td>CAN_Bus_Name</td><td>&quot;CAN1&quot;</td><td>&quot;CAN1&quot;</td></tr><tr><td>Node_Name</td><td>&quot;ECU4&quot;</td><td>&quot;ECU4&quot;</td></tr><tr><td>Enable_Sensor_DB</td><td>true</td><td>true</td></tr><tr><td>Enable_Sensor_Random</td><td>true /* false: sequential */</td><td>true</td></tr><tr><td>Packet_Error_Mbps</td><td>0.0 /* 0.0 disables */</td><td>0.0</td></tr></table> <h2>CAN_Node3</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>_explanation</td><td>Interfaces and Buses-&gt;CAN-&gt;CAN_Node</td><td>Interfaces and Buses-&gt;CAN-&gt;CAN_Node</td></tr><tr><td>CAN_Bus_Name</td><td>&quot;CAN1&quot;</td><td>&quot;CAN1&quot;</td></tr><tr><td>Node_Name</td><td>&quot;ECU3&quot;</td><td>&quot;ECU3&quot;</td></tr><tr><td>Enable_Sensor_DB</td><td>true</td><td>true</td></tr><tr><td>Enable_Sensor_Random</td><td>true /* false: sequential */</td><td>true</td></tr><tr><td>Packet_Error_Mbps</td><td>0.0 /* 0.0 disables */</td><td>0.0</td></tr></table> <h2>CAN_Node1</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>_explanation</td><td>Interfaces and Buses-&gt;CAN-&gt;CAN_Node</td><td>Interfaces and Buses-&gt;CAN-&gt;CAN_Node</td></tr><tr><td>CAN_Bus_Name</td><td>&quot;CAN1&quot;</td><td>&quot;CAN1&quot;</td></tr><tr><td>Node_Name</td><td>&quot;ECU1&quot;</td><td>&quot;ECU1&quot;</td></tr><tr><td>Enable_Sensor_DB</td><td>true</td><td>true</td></tr><tr><td>Enable_Sensor_Random</td><td>true /* false: sequential */</td><td>true</td></tr><tr><td>Packet_Error_Mbps</td><td>0.0 /* 0.0 disables */</td><td>0.0</td></tr></table> <h2>CAN_Node2</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>_explanation</td><td>Interfaces and Buses-&gt;CAN-&gt;CAN_Node</td><td>Interfaces and Buses-&gt;CAN-&gt;CAN_Node</td></tr><tr><td>CAN_Bus_Name</td><td>&quot;CAN1&quot;</td><td>&quot;CAN1&quot;</td></tr><tr><td>Node_Name</td><td>&quot;ECU2&quot;</td><td>&quot;ECU2&quot;</td></tr><tr><td>Enable_Sensor_DB</td><td>true</td><td>true</td></tr><tr><td>Enable_Sensor_Random</td><td>true /* false: sequential */</td><td>true</td></tr><tr><td>Packet_Error_Mbps</td><td>0.0 /* 0.0 disables */</td><td>0.0</td></tr></table> <h2>CAN_Seg</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>_explanation</td><td>Interfaces and Buses-&gt;CAN-&gt;CAN_Bus</td><td>Interfaces and Buses-&gt;CAN-&gt;CAN_Bus</td></tr><tr><td>Sim_Time</td><td>Sim_Time</td><td>0.008</td></tr><tr><td>FD_Enable</td><td>true</td><td>true</td></tr><tr><td>FD_Multiplier</td><td>4.0</td><td>4.0</td></tr><tr><td>Plot_Enable</td><td>false</td><td>false</td></tr><tr><td>CAN_Bus_Name</td><td>&quot;CAN1&quot;</td><td>&quot;CAN1&quot;</td></tr><tr><td>CAN_Mbps</td><td>CAN_Mbps</td><td>1.0</td></tr><tr><td>Signal_DB</td><td>Name ID DLC Cycle_Time StartBit Length Initial_Value Minimum Maximum ;\\nFrontCam \t0x618 64 1 8 2 10 0 100 ;\\nRearCam \t0x619 64 2 8 2 10 0 100 ;\\nRadar1 0x620 64 3 8 2 10 0 100 ;\\nRadar2 \t0x621 64 4 8 2 10 0 100 ;\\nRadar3\t\t0x622 64 5 8 2 10 0 100 ;\\nRadar4 \t0x623 64 6 8 2 10 0 100 ;</td><td>&quot;Name ID DLC Cycle_Time StartBit Length Initial_Value Minimum Maximum ;\\nFrontCam \t0x618 64 1 8 2 10 0 100 ;\\nRearCam \t0x619 64 2 8 2 10 0 100 ;\\nRadar1 0x620 64 3 8 2 10 0 100 ;\\nRadar2 \t0x621 64 4 8 2 10 0 100 ;\\nRadar3\t\t0x622 64 5 8 2 10 0 100 ;\\nRadar4 \t0x623 64 6 8 2 10 0 100 ;&quot;</td></tr><tr><td>Messages_DB</td><td>Name Address Message ID DLC Cycle_Time StartBit Length Initial_Value Offset Minimum Maximum ;\\nECU1 0x600 Camera1\t 0x618 64 1 2 64 0 0 0 2048 ;\\nECU2 0x601 Camera2\t 0x619 64 2 2 64 0 0 0 2048 ;\\nECU3 0x602 ProcRadar1 0x620 64 3 2 64 0 0 0 2048 ;\\nECU4 0x603 ProcRadar2 0x621 64 4 2 64 0 0 0 2048 ;\\nECU3 0x604 ProcRadar3 0x622 64 5 2 64 0 0 0 2048 ;\\nECU6 0x605 ProcRadar4 0x623 64 6 2 64 0 0 0 2048 ;</td><td>&quot;Name Address Message ID DLC Cycle_Time StartBit Length Initial_Value Offset Minimum Maximum ;\\nECU1 0x600 Camera1\t 0x618 64 1 2 64 0 0 0 2048 ;\\nECU2 0x601 Camera2\t 0x619 64 2 2 64 0 0 0 2048 ;\\nECU3 0x602 ProcRadar1 0x620 64 3 2 64 0 0 0 2048 ;\\nECU4 0x603 ProcRadar2 0x621 64 4 2 64 0 0 0 2048 ;\\nECU3 0x604 ProcRadar3 0x622 64 5 2 64 0 0 0 2048 ;\\nECU6 0x605 ProcRadar4 0x623 64 6 2 64 0 0 0 2048 ;&quot;</td></tr><tr><td>Filtering_DB</td><td>Name Message_Array ;\\nECU1 \t{} ;\\nECU2 \t{} ;\\nECU3 \t{} ;\\nECU4 \t{} ;\\nECU5 \t{&quot;Camera2&quot;,&quot;ProcRadar1&quot;,&quot;Camera1&quot;,&quot;ProcRadar2&quot;,&quot;ProcRadar3&quot;,&quot;ProcRadar4&quot;} ;\\nECU6 \t{} ;\\n</td><td>&quot;Name Message_Array ;\\nECU1 \t{} ;\\nECU2 \t{} ;\\nECU3 \t{} ;\\nECU4 \t{} ;\\nECU5 \t{&quot;Camera2&quot;,&quot;ProcRadar1&quot;,&quot;Camera1&quot;,&quot;ProcRadar2&quot;,&quot;ProcRadar3&quot;,&quot;ProcRadar4&quot;} ;\\nECU6 \t{} ;\\n&quot;</td></tr><tr><td>Power_Manager_Table</td><td>/* \\n----------Name------------ ----------Power by State---------- -----Operating States------ --Transition-- */\\n Architecture_Block Active Standby Suspend Off Existing OffState OnState t_OnOff ; \\nPower_ECU1 1.0 0.1 0.0 0.0 Standby Standby Active 1.0e-6 ;\\nPower_ECU2 1.1 0.1 0.0 0.0 Standby Standby Active 1.0e-6 ;\\nPower_ECU3 1.2 0.1 0.0 0.0 Standby Standby Active 1.0e-6 ;\\nPower_ECU4 1.3 0.1 0.0 0.0 Standby Standby Active 1.0e-6 ;\\nPower_ECU5 1.4 0.1 0.0 0.0 Standby Standby Active 1.0e-6 ;\\nPower_ECU6 1.5 0.1 0.0 0.0 Standby Standby Active 1.0e-6 ; </td><td>&quot;/* \\n----------Name------------ ----------Power by State---------- -----Operating States------ --Transition-- */\\n Architecture_Block Active Standby Suspend Off Existing OffState OnState t_OnOff ; \\nPower_ECU1 1.0 0.1 0.0 0.0 Standby Standby Active 1.0e-6 ;\\nPower_ECU2 1.1 0.1 0.0 0.0 Standby Standby Active 1.0e-6 ;\\nPower_ECU3 1.2 0.1 0.0 0.0 Standby Standby Active 1.0e-6 ;\\nPower_ECU4 1.3 0.1 0.0 0.0 Standby Standby Active 1.0e-6 ;\\nPower_ECU5 1.4 0.1 0.0 0.0 Standby Standby Active 1.0e-6 ;\\nPower_ECU6 1.5 0.1 0.0 0.0 Standby Standby Active 1.0e-6 ; &quot;</td></tr><tr><td>Base_Rate</td><td>1.0E-3 /* Cycle_Time mult */</td><td>1.0E-3</td></tr><tr><td>Identifier_Bits</td><td>11</td><td>&quot;11&quot;</td></tr></table> <h2>GPU</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>WarpsPerPE</td><td>8</td><td>8</td></tr><tr><td>ThreadsPerWarp</td><td>32</td><td>32</td></tr><tr><td>SpeedMhz</td><td>1000.0</td><td>1000.0</td></tr><tr><td>BusWidthBytes</td><td>4</td><td>4</td></tr><tr><td>CacheLineBytes</td><td>64</td><td>64</td></tr><tr><td>LanesPerPE</td><td>8</td><td>8</td></tr><tr><td>simTime</td><td>1.0</td><td>1.0</td></tr><tr><td>CSV_File_Arr</td><td>{&quot;Warp_Table.csv&quot;,&quot;Program_Table.csv&quot;,&quot;Trace_Sequence_Table.csv&quot;}</td><td>{&quot;Warp_Table.csv&quot;, &quot;Program_Table.csv&quot;, &quot;Trace_Sequence_Table.csv&quot;}</td></tr><tr><td>NumPEs</td><td>64</td><td>64</td></tr><tr><td>NumSCIExecs</td><td>4</td><td>4</td></tr><tr><td>Enable_Delays</td><td>true</td><td>true</td></tr><tr><td>Enable_Messages</td><td>true</td><td>true</td></tr><tr><td>Instance_Field_Name</td><td>&quot;PE_Idx&quot;</td><td>&quot;PE_Idx&quot;</td></tr><tr><td>ProcessorEngines</td><td>1</td><td>1</td></tr></table> <h2>ExpressionList10</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>/* Template to enter multiple RegEx lines*/\\n Result_A = MyRegExpression_A_or_None /* Expression 1 */\\n Result_B = MyRegExpression_B_or_None /* Expression 2 */\\n Result_C = MyRegExpression_C_or_None /* Expression 3 */ \\n/* Add as many RegEx lines are required */\\n</td><td>/* Template to enter multiple RegEx lines*/\\n Result_A = MyRegExpression_A_or_None /* Expression 1 */\\n Result_B = MyRegExpression_B_or_None /* Expression 2 */\\n Result_C = MyRegExpression_C_or_None /* Expression 3 */ \\n/* Add as many RegEx lines are required */\\n</td></tr><tr><td>Expression_List</td><td>/* Template to enter multiple RegEx lines*/\\nResult_A = TNow-input.TIME</td><td>/* Template to enter multiple RegEx lines*/\\nResult_A = TNow-input.TIME</td></tr><tr><td>Output_Ports</td><td>output</td><td>&quot;output&quot;</td></tr><tr><td>Output_Values</td><td>Result_A</td><td>&quot;Result_A&quot;</td></tr><tr><td>Output_Conditions</td><td>true</td><td>&quot;true&quot;</td></tr></table> <h2>IN2</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Destination_Name</td><td>Flow1</td><td>&quot;Flow1&quot;</td></tr><tr><td>Destination_Type</td><td>Global</td><td>Global</td></tr></table> <h2>OUT2</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Destination_Name</td><td>Cluster1_In</td><td>&quot;Cluster1_In&quot;</td></tr><tr><td>Destination_Type</td><td>Global</td><td>Global</td></tr></table> <h2>ExpressionList9</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>/* Template to enter multiple RegEx lines*/\\n Result_A = MyRegExpression_A_or_None /* Expression 1 */\\n Result_B = MyRegExpression_B_or_None /* Expression 2 */\\n Result_C = MyRegExpression_C_or_None /* Expression 3 */ \\n/* Add as many RegEx lines are required */\\n</td><td>/* Template to enter multiple RegEx lines*/\\n Result_A = MyRegExpression_A_or_None /* Expression 1 */\\n Result_B = MyRegExpression_B_or_None /* Expression 2 */\\n Result_C = MyRegExpression_C_or_None /* Expression 3 */ \\n/* Add as many RegEx lines are required */\\n</td></tr><tr><td>Expression_List</td><td>/* Template to enter multiple RegEx lines*/\\ninput.A_Task_Name = &quot;Fr_Task&quot;\\ninput.A_Source = &quot;Trigger&quot;\\ninput.A_Instruction = {&quot;Load&quot;}\\ninput.A_IDX = 0\\ninput.A_IDY = 0\\ninput.A_Task_ID = 0\\ninput.Task_Destination = &quot;Flow1&quot;</td><td>/* Template to enter multiple RegEx lines*/\\ninput.A_Task_Name = &quot;Fr_Task&quot;\\ninput.A_Source = &quot;Trigger&quot;\\ninput.A_Instruction = {&quot;Load&quot;}\\ninput.A_IDX = 0\\ninput.A_IDY = 0\\ninput.A_Task_ID = 0\\ninput.Task_Destination = &quot;Flow1&quot;</td></tr><tr><td>Output_Ports</td><td>output</td><td>&quot;output&quot;</td></tr><tr><td>Output_Values</td><td>input</td><td>&quot;input&quot;</td></tr><tr><td>Output_Conditions</td><td>true</td><td>&quot;true&quot;</td></tr></table> <h2>ExpressionList8</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>/* Template to enter multiple RegEx lines*/\\n Result_A = MyRegExpression_A_or_None /* Expression 1 */\\n Result_B = MyRegExpression_B_or_None /* Expression 2 */\\n Result_C = MyRegExpression_C_or_None /* Expression 3 */ \\n/* Add as many RegEx lines are required */\\n</td><td>/* Template to enter multiple RegEx lines*/\\n Result_A = MyRegExpression_A_or_None /* Expression 1 */\\n Result_B = MyRegExpression_B_or_None /* Expression 2 */\\n Result_C = MyRegExpression_C_or_None /* Expression 3 */ \\n/* Add as many RegEx lines are required */\\n</td></tr><tr><td>Expression_List</td><td>/* Template to enter multiple RegEx lines*/\\ninput.A_Task_Name = &quot;Histogram&quot;\\ninput.A_Priority = 1</td><td>/* Template to enter multiple RegEx lines*/\\ninput.A_Task_Name = &quot;Histogram&quot;\\ninput.A_Priority = 1</td></tr><tr><td>Output_Ports</td><td>output</td><td>&quot;output&quot;</td></tr><tr><td>Output_Values</td><td>input</td><td>&quot;input&quot;</td></tr><tr><td>Output_Conditions</td><td>true</td><td>&quot;true&quot;</td></tr></table> <h2>Histogram</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Block_Name</td><td>Histogram_Mapper</td><td>&quot;Histogram_Mapper&quot;</td></tr><tr><td>Database_Lookup</td><td>None</td><td>&quot;None&quot;</td></tr><tr><td>Database_Expression</td><td>None /* Advanced Feature: can use for any DB_Fld_Name below with database name */</td><td>&quot;None /* Advanced Feature: can use for any DB_Fld_Name below with database name */&quot;</td></tr><tr><td>Task_Name</td><td>A_Task_Name</td><td>&quot;A_Task_Name&quot;</td></tr><tr><td>Task_Destination</td><td>Task_Destination</td><td>&quot;Task_Destination&quot;</td></tr><tr><td>Task_Instruction</td><td>A_Instruction</td><td>&quot;A_Instruction&quot;</td></tr><tr><td>Task_ID</td><td>3</td><td>&quot;3&quot;</td></tr><tr><td>Task_Priority</td><td>A_Priority</td><td>&quot;A_Priority&quot;</td></tr><tr><td>Task_Time</td><td>A_Time</td><td>&quot;A_Time&quot;</td></tr><tr><td>Task_Plot_ID</td><td>3</td><td>&quot;3&quot;</td></tr></table> <h2>TaskGenerator6</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Name</td><td>&quot;Task_6&quot;</td><td>&quot;Task_6&quot;</td></tr><tr><td>Mode_of_Operation</td><td>&quot;Field&quot; /* Field gets input, Random selects a Task, Loop is sequential */</td><td>&quot;Field&quot;</td></tr><tr><td>DEBUG</td><td>false /* To Debug Port */</td><td>false</td></tr><tr><td>_explanation</td><td>ProcessorGenerator-&gt;TaskGenerator</td><td>ProcessorGenerator-&gt;TaskGenerator</td></tr><tr><td>Sim_Time</td><td>Sim_Time</td><td>0.008</td></tr><tr><td>Instruction_Mix_File</td><td>Instruction_Mix_Table.txt</td><td>&quot;Instruction_Mix_Table.txt&quot;</td></tr><tr><td>My_Path</td><td>VS + &quot;/demo/Partitioning/SoC&quot;</td><td>&quot;C:\\VisualSim\\Tool\\VisualSim18_64\\VS_AR/demo/Partitioning/SoC&quot;</td></tr><tr><td>Read_My_Instruction_Mix_Table</td><td>&quot;Instruction_Mix_Table.txt&quot; /* Input file name */</td><td>&quot;Instruction_Mix_Table.txt&quot;</td></tr></table> <h2>ExpressionList7</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>/* Template to enter multiple RegEx lines*/\\n Result_A = MyRegExpression_A_or_None /* Expression 1 */\\n Result_B = MyRegExpression_B_or_None /* Expression 2 */\\n Result_C = MyRegExpression_C_or_None /* Expression 3 */ \\n/* Add as many RegEx lines are required */\\n</td><td>/* Template to enter multiple RegEx lines*/\\n Result_A = MyRegExpression_A_or_None /* Expression 1 */\\n Result_B = MyRegExpression_B_or_None /* Expression 2 */\\n Result_C = MyRegExpression_C_or_None /* Expression 3 */ \\n/* Add as many RegEx lines are required */\\n</td></tr><tr><td>Expression_List</td><td>/* Template to enter multiple RegEx lines*/\\ninput.A_Task_Name = &quot;Pre_Process&quot;\\ninput.A_Priority = 1\\ninput.Task_Destination = &quot;Architecture_1&quot; + &quot;.ARM72_Denver&quot; + irand(1,2) + &quot;1&quot;</td><td>/* Template to enter multiple RegEx lines*/\\ninput.A_Task_Name = &quot;Pre_Process&quot;\\ninput.A_Priority = 1\\ninput.Task_Destination = &quot;Architecture_1&quot; + &quot;.ARM72_Denver&quot; + irand(1,2) + &quot;1&quot;</td></tr><tr><td>Output_Ports</td><td>output</td><td>&quot;output&quot;</td></tr><tr><td>Output_Values</td><td>input</td><td>&quot;input&quot;</td></tr><tr><td>Output_Conditions</td><td>true</td><td>&quot;true&quot;</td></tr></table> <h2>ExpressionList6</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>/* Template to enter multiple RegEx lines*/\\n Result_A = MyRegExpression_A_or_None /* Expression 1 */\\n Result_B = MyRegExpression_B_or_None /* Expression 2 */\\n Result_C = MyRegExpression_C_or_None /* Expression 3 */ \\n/* Add as many RegEx lines are required */\\n</td><td>/* Template to enter multiple RegEx lines*/\\n Result_A = MyRegExpression_A_or_None /* Expression 1 */\\n Result_B = MyRegExpression_B_or_None /* Expression 2 */\\n Result_C = MyRegExpression_C_or_None /* Expression 3 */ \\n/* Add as many RegEx lines are required */\\n</td></tr><tr><td>Expression_List</td><td>/* Template to enter multiple RegEx lines*/\\ninput.A_Task_Name = &quot;YConversion&quot;\\ninput.A_Priority = 1\\ninput.A_Destination = &quot;Architecture_1&quot; + &quot;.ARM72_Denver1&quot; + &quot;1&quot;</td><td>/* Template to enter multiple RegEx lines*/\\ninput.A_Task_Name = &quot;YConversion&quot;\\ninput.A_Priority = 1\\ninput.A_Destination = &quot;Architecture_1&quot; + &quot;.ARM72_Denver1&quot; + &quot;1&quot;</td></tr><tr><td>Output_Ports</td><td>output</td><td>&quot;output&quot;</td></tr><tr><td>Output_Values</td><td>input</td><td>&quot;input&quot;</td></tr><tr><td>Output_Conditions</td><td>true</td><td>&quot;true&quot;</td></tr></table> <h2>Pre_Proc</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Block_Name</td><td>Pre_Proc_Mapper</td><td>&quot;Pre_Proc_Mapper&quot;</td></tr><tr><td>Database_Lookup</td><td>None</td><td>&quot;None&quot;</td></tr><tr><td>Database_Expression</td><td>None /* Advanced Feature: can use for any DB_Fld_Name below with database name */</td><td>&quot;None /* Advanced Feature: can use for any DB_Fld_Name below with database name */&quot;</td></tr><tr><td>Task_Name</td><td>A_Task_Name</td><td>&quot;A_Task_Name&quot;</td></tr><tr><td>Task_Destination</td><td>Task_Destination</td><td>&quot;Task_Destination&quot;</td></tr><tr><td>Task_Instruction</td><td>A_Instruction</td><td>&quot;A_Instruction&quot;</td></tr><tr><td>Task_ID</td><td>2</td><td>&quot;2&quot;</td></tr><tr><td>Task_Priority</td><td>A_Priority</td><td>&quot;A_Priority&quot;</td></tr><tr><td>Task_Time</td><td>A_Time</td><td>&quot;A_Time&quot;</td></tr><tr><td>Task_Plot_ID</td><td>2</td><td>&quot;2&quot;</td></tr></table> <h2>TaskGenerator5</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Name</td><td>&quot;Task_5&quot;</td><td>&quot;Task_5&quot;</td></tr><tr><td>Mode_of_Operation</td><td>&quot;Field&quot; /* Field gets input, Random selects a Task, Loop is sequential */</td><td>&quot;Field&quot;</td></tr><tr><td>DEBUG</td><td>false /* To Debug Port */</td><td>false</td></tr><tr><td>_explanation</td><td>ProcessorGenerator-&gt;TaskGenerator</td><td>ProcessorGenerator-&gt;TaskGenerator</td></tr><tr><td>Sim_Time</td><td>Sim_Time</td><td>0.008</td></tr><tr><td>Instruction_Mix_File</td><td>Instruction_Mix_Table.txt</td><td>&quot;Instruction_Mix_Table.txt&quot;</td></tr><tr><td>My_Path</td><td>VS + &quot;/demo/Partitioning/SoC&quot;</td><td>&quot;C:\\VisualSim\\Tool\\VisualSim18_64\\VS_AR/demo/Partitioning/SoC&quot;</td></tr><tr><td>Read_My_Instruction_Mix_Table</td><td>&quot;Instruction_Mix_Table.txt&quot; /* Input file name */</td><td>&quot;Instruction_Mix_Table.txt&quot;</td></tr></table> <h2>YConversion</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Block_Name</td><td>YConversion_Task</td><td>&quot;YConversion_Task&quot;</td></tr><tr><td>Database_Lookup</td><td>None</td><td>&quot;None&quot;</td></tr><tr><td>Database_Expression</td><td>None /* Advanced Feature: can use for any DB_Fld_Name below with database name */</td><td>&quot;None /* Advanced Feature: can use for any DB_Fld_Name below with database name */&quot;</td></tr><tr><td>Task_Name</td><td>A_Task_Name</td><td>&quot;A_Task_Name&quot;</td></tr><tr><td>Task_Destination</td><td>A_Destination</td><td>&quot;A_Destination&quot;</td></tr><tr><td>Task_Instruction</td><td>A_Instruction</td><td>&quot;A_Instruction&quot;</td></tr><tr><td>Task_ID</td><td>1</td><td>&quot;1&quot;</td></tr><tr><td>Task_Priority</td><td>A_Priority</td><td>&quot;A_Priority&quot;</td></tr><tr><td>Task_Time</td><td>A_Time</td><td>&quot;A_Time&quot;</td></tr><tr><td>Task_Plot_ID</td><td>1</td><td>&quot;1&quot;</td></tr></table> <h2>TaskGenerator4</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Name</td><td>&quot;Task_4&quot;</td><td>&quot;Task_4&quot;</td></tr><tr><td>Mode_of_Operation</td><td>&quot;Field&quot; /* Field gets input, Random selects a Task, Loop is sequential */</td><td>&quot;Field&quot;</td></tr><tr><td>DEBUG</td><td>false /* To Debug Port */</td><td>false</td></tr><tr><td>_explanation</td><td>ProcessorGenerator-&gt;TaskGenerator</td><td>ProcessorGenerator-&gt;TaskGenerator</td></tr><tr><td>Sim_Time</td><td>Sim_Time</td><td>0.008</td></tr><tr><td>Instruction_Mix_File</td><td>Instruction_Mix_Table.txt</td><td>&quot;Instruction_Mix_Table.txt&quot;</td></tr><tr><td>My_Path</td><td>VS + &quot;/demo/Partitioning/SoC&quot;</td><td>&quot;C:\\VisualSim\\Tool\\VisualSim18_64\\VS_AR/demo/Partitioning/SoC&quot;</td></tr><tr><td>Read_My_Instruction_Mix_Table</td><td>&quot;Instruction_Mix_Table.txt&quot; /* Input file name */</td><td>&quot;Instruction_Mix_Table.txt&quot;</td></tr></table> <h2>Traffic2</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Data_Structure_Name</td><td>&quot;Processor_DS&quot;</td><td>&quot;Processor_DS&quot;</td></tr><tr><td>Start_Time</td><td>1.0e-8</td><td>1.0E-8</td></tr><tr><td>Value_1</td><td>1.0E-03</td><td>1.0E-3</td></tr><tr><td>Value_2</td><td>2.0</td><td>2.0</td></tr><tr><td>Random_Seed</td><td>123457L</td><td>123457L</td></tr><tr><td>Time_Distribution</td><td>Fixed (Value_1)</td><td>Fixed (Value_1)</td></tr></table> <h2>aux2</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Block_Name</td><td>&quot;MyMachine_1&quot;</td><td>&quot;MyMachine_1&quot;</td></tr><tr><td>Optional_Parameters</td><td>/* First row contains Column Names. */\\nParameter_Name Parameter_Value \\nPath VS/User_Library \\nRead_File none \\nSave_Files false \\nProfile_File none \\nListen_to_File none \\nDuplicate_Input true \\nProfile 0 \\nMaximum_Loops 1000000 \\nBlock_Reference Block_Name \\nPort_Order_Array {&quot;input&quot;} \\nAdd_Scheduler_Times_to_DS false</td><td>/* First row contains Column Names. */\\nParameter_Name Parameter_Value \\nPath VS/User_Library \\nRead_File none \\nSave_Files false \\nProfile_File none \\nListen_to_File none \\nDuplicate_Input true \\nProfile 0 \\nMaximum_Loops 1000000 \\nBlock_Reference Block_Name \\nPort_Order_Array {&quot;input&quot;} \\nAdd_Scheduler_Times_to_DS false</td></tr><tr><td>Multilevel_Destinations</td><td>{&quot;ARM72_11&quot;,&quot;ARM72_21&quot;,&quot;ARM72_31&quot;,&quot;ARM72_41&quot;,&quot;ARM72_Denver11&quot;,&quot;ARM72_Denver21&quot;,&quot;DMA_Inst1&quot;}</td><td>{&quot;ARM72_11&quot;, &quot;ARM72_21&quot;, &quot;ARM72_31&quot;, &quot;ARM72_41&quot;, &quot;ARM72_Denver11&quot;, &quot;ARM72_Denver21&quot;, &quot;DMA_Inst1&quot;}</td></tr><tr><td>_flipPortsVertical</td><td>true</td><td>true</td></tr><tr><td>_flipPortsHorizontal</td><td>false</td><td>false</td></tr><tr><td>_rotatePorts</td><td>180</td><td>180</td></tr></table> <h2>aux</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Block_Name</td><td>&quot;MyMachine_2&quot;</td><td>&quot;MyMachine_2&quot;</td></tr><tr><td>Optional_Parameters</td><td>/* First row contains Column Names. */\\nParameter_Name Parameter_Value \\nPath VS/User_Library \\nRead_File none \\nSave_Files false \\nProfile_File none \\nListen_to_File none \\nDuplicate_Input true \\nProfile 0 \\nMaximum_Loops 1000000 \\nBlock_Reference Block_Name \\nPort_Order_Array {&quot;input&quot;} \\nAdd_Scheduler_Times_to_DS false</td><td>/* First row contains Column Names. */\\nParameter_Name Parameter_Value \\nPath VS/User_Library \\nRead_File none \\nSave_Files false \\nProfile_File none \\nListen_to_File none \\nDuplicate_Input true \\nProfile 0 \\nMaximum_Loops 1000000 \\nBlock_Reference Block_Name \\nPort_Order_Array {&quot;input&quot;} \\nAdd_Scheduler_Times_to_DS false</td></tr><tr><td>Multilevel_Destinations</td><td>{&quot;DRAM_GPU1&quot;}</td><td>{&quot;DRAM_GPU1&quot;}</td></tr></table> <h2>ArchitectureSetup2</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Source_Node Destination_Node Hop Source_Port ; \\nProcessor_1 Cache_1 Port_1 bus_out2 ;\\nCache_1 Processor_1 Port_2 output ;\\nCache_1 SDRAM_1 Port_2 output ;\\nSDRAM_1 Cache_1 Port_4 output ;\\nSDRAM_1 Processor_1 Port_4 output ;</td><td>Source_Node Destination_Node Hop Source_Port ; \\nProcessor_1 Cache_1 Port_1 bus_out2 ;\\nCache_1 Processor_1 Port_2 output ;\\nCache_1 SDRAM_1 Port_2 output ;\\nSDRAM_1 Cache_1 Port_4 output ;\\nSDRAM_1 Processor_1 Port_4 output ;</td></tr><tr><td>Architecture_Name</td><td>&quot;Architecture_1&quot;</td><td>&quot;Architecture_1&quot;</td></tr><tr><td>Field_Name_Mapping</td><td>/* First row contains Column Names. */\\nExternal_Field_Name Internal_Field_Name ; \\nA_Address A_Address ; \\nA_Bytes A_Bytes ; \\nA_Data A_Data ; \\nA_IDX A_IDX ; \\nA_Instruction A_Instruction ; \\nA_Priority A_Priority ; \\nA_Source A_Source ; \\nA_Destination A_Destination ; \\nA_Task_ID A_Task_ID ; \\nA_Time A_Time ; \\n</td><td>/* First row contains Column Names. */\\nExternal_Field_Name Internal_Field_Name ; \\nA_Address A_Address ; \\nA_Bytes A_Bytes ; \\nA_Data A_Data ; \\nA_IDX A_IDX ; \\nA_Instruction A_Instruction ; \\nA_Priority A_Priority ; \\nA_Source A_Source ; \\nA_Destination A_Destination ; \\nA_Task_ID A_Task_ID ; \\nA_Time A_Time ; \\n</td></tr><tr><td>Routing_Table</td><td>/* First row contains Column Names. */\\nSource_Node Destination_Node Hop Source_Port ; \\nProcessor_1 Cache_1 Port_1 bus_out2 ;</td><td>/* First row contains Column Names. */\\nSource_Node Destination_Node Hop Source_Port ; \\nProcessor_1 Cache_1 Port_1 bus_out2 ;</td></tr><tr><td>Number_of_Samples</td><td>2</td><td>2</td></tr><tr><td>Statistics_to_Plot</td><td>&quot;Processor_1_PROC_Utilization_Min, Processor_1_PROC_Utilization_Mean, Processor_1_PROC_Utilization_Max&quot;</td><td>&quot;Processor_1_PROC_Utilization_Min, Processor_1_PROC_Utilization_Mean, Processor_1_PROC_Utilization_Max&quot;</td></tr><tr><td>Internal_Plot_Trace_Offset</td><td>2</td><td>2</td></tr><tr><td>Listen_to_Architecture_Options</td><td>None</td><td>None</td></tr></table> <h2>PowerTable</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>This is the Excel spreadsheet import. The power \\ninformation is maintained here.</td><td>This is the Excel spreadsheet import. The power \\ninformation is maintained here.</td></tr><tr><td>Manager_Name</td><td>&quot;Manager_Top&quot;</td><td>&quot;Manager_Top&quot;</td></tr><tr><td>fileOrURL</td><td>&nbsp;</td><td>&quot;&quot;</td></tr><tr><td>Manager_Setup</td><td>/* Power_Table. First row contains Column Names, expressions valid for entries except Device Name. \\n where &quot;Scheduler_&quot; or &quot;STR_&quot; + BlockName; Processor, Bus, DRAM = Architecture_Name + &quot;_&quot; + BlockName \\n--------Device Name------- ---------Power States------ -----Operating States------ --toActive-- --Speed-- --Exist-- */\\nArchitecture_Block Standby Active Wait Idle Existing OffState OnState t_OnOff Mhz Cycles ; \\nPower_BB_Switch \t 70.0 300.0 0.0 0.0 Standby Standby Active Cycle_t 1000.0 1.0 ; </td><td>/* Power_Table. First row contains Column Names, expressions valid for entries except Device Name. \\n where &quot;Scheduler_&quot; or &quot;STR_&quot; + BlockName; Processor, Bus, DRAM = Architecture_Name + &quot;_&quot; + BlockName \\n--------Device Name------- ---------Power States------ -----Operating States------ --toActive-- --Speed-- --Exist-- */\\nArchitecture_Block Standby Active Wait Idle Existing OffState OnState t_OnOff Mhz Cycles ; \\nPower_BB_Switch \t 70.0 300.0 0.0 0.0 Standby Standby Active Cycle_t 1000.0 1.0 ; </td></tr><tr><td>Async_State_Change</td><td>/* Async_State_Change. First row contains Column Names, expressions valid for entries except Device Name. \\n where State to same State can extend a Power State \\n--------Device Name------- --Start------Expression------Next--- */\\nArchitecture_Block State Time State ; \\n</td><td>/* Async_State_Change. First row contains Column Names, expressions valid for entries except Device Name. \\n where State to same State can extend a Power State \\n--------Device Name------- --Start------Expression------Next--- */\\nArchitecture_Block State Time State ; \\n</td></tr><tr><td>Expression_List</td><td>/* First row contains Column Names. \\n \\n---------Reference-------- --------------Expression------------ */\\nName Value ; \\nCycle_t 0.0 ; \\n</td><td>/* First row contains Column Names. \\n \\n---------Reference-------- --------------Expression------------ */\\nName Value ; \\nCycle_t 0.0 ; \\n</td></tr><tr><td>Battery_Units</td><td>Milli_Watts</td><td>Milli_Watts</td></tr><tr><td>State_Plot_Enable</td><td>false</td><td>false</td></tr></table> <h2>TextDisplay</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>rowsDisplayed</td><td>10</td><td>10</td></tr><tr><td>columnsDisplayed</td><td>40</td><td>40</td></tr><tr><td>suppressBlankLines</td><td>false</td><td>false</td></tr><tr><td>title</td><td>&nbsp;</td><td>&nbsp;</td></tr><tr><td>ViewText</td><td>true</td><td>true</td></tr><tr><td>saveText</td><td>false</td><td>false</td></tr><tr><td>fileName</td><td>Enter Filename to save text</td><td>&quot;Enter Filename to save text&quot;</td></tr><tr><td>Append_Time</td><td>true</td><td>true</td></tr></table> <h2>TimeDataPlotter</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>fillOnWrapup</td><td>true</td><td>true</td></tr><tr><td>legend</td><td>Flow1, Flow2</td><td>Flow1, Flow2</td></tr><tr><td>startingDataset</td><td>0</td><td>0</td></tr><tr><td>fileName</td><td>Enter Filename to save plot</td><td>&quot;Enter Filename to save plot&quot;</td></tr><tr><td>viewPlot</td><td>true</td><td>true</td></tr><tr><td>savePlot</td><td>false</td><td>false</td></tr></table> <h2>ExpressionList5</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>/* Template to enter multiple RegEx lines*/\\n Result_A = MyRegExpression_A_or_None /* Expression 1 */\\n Result_B = MyRegExpression_B_or_None /* Expression 2 */\\n Result_C = MyRegExpression_C_or_None /* Expression 3 */ \\n/* Add as many RegEx lines are required */\\n</td><td>/* Template to enter multiple RegEx lines*/\\n Result_A = MyRegExpression_A_or_None /* Expression 1 */\\n Result_B = MyRegExpression_B_or_None /* Expression 2 */\\n Result_C = MyRegExpression_C_or_None /* Expression 3 */ \\n/* Add as many RegEx lines are required */\\n</td></tr><tr><td>Expression_List</td><td>/* Template to enter multiple RegEx lines*/\\nResult_A = TNow-input.TIME</td><td>/* Template to enter multiple RegEx lines*/\\nResult_A = TNow-input.TIME</td></tr><tr><td>Output_Ports</td><td>output</td><td>&quot;output&quot;</td></tr><tr><td>Output_Values</td><td>Result_A</td><td>&quot;Result_A&quot;</td></tr><tr><td>Output_Conditions</td><td>true</td><td>&quot;true&quot;</td></tr></table> <h2>IN</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Destination_Name</td><td>Flow2</td><td>&quot;Flow2&quot;</td></tr><tr><td>Destination_Type</td><td>Global</td><td>Global</td></tr></table> <h2>OUT</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Destination_Name</td><td>Cluster1_In</td><td>&quot;Cluster1_In&quot;</td></tr><tr><td>Destination_Type</td><td>Global</td><td>Global</td></tr></table> <h2>ExpressionList4</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>/* Template to enter multiple RegEx lines*/\\n Result_A = MyRegExpression_A_or_None /* Expression 1 */\\n Result_B = MyRegExpression_B_or_None /* Expression 2 */\\n Result_C = MyRegExpression_C_or_None /* Expression 3 */ \\n/* Add as many RegEx lines are required */\\n</td><td>/* Template to enter multiple RegEx lines*/\\n Result_A = MyRegExpression_A_or_None /* Expression 1 */\\n Result_B = MyRegExpression_B_or_None /* Expression 2 */\\n Result_C = MyRegExpression_C_or_None /* Expression 3 */ \\n/* Add as many RegEx lines are required */\\n</td></tr><tr><td>Expression_List</td><td>/* Template to enter multiple RegEx lines*/\\ninput.A_Task_Name = &quot;Fr_Task&quot;\\ninput.A_Source = &quot;Trigger&quot;\\ninput.A_Instruction = {&quot;Load&quot;}\\ninput.A_IDX = 0\\ninput.A_IDY = 0\\ninput.A_Task_ID = 0\\ninput.Task_Destination = &quot;Flow2&quot;</td><td>/* Template to enter multiple RegEx lines*/\\ninput.A_Task_Name = &quot;Fr_Task&quot;\\ninput.A_Source = &quot;Trigger&quot;\\ninput.A_Instruction = {&quot;Load&quot;}\\ninput.A_IDX = 0\\ninput.A_IDY = 0\\ninput.A_Task_ID = 0\\ninput.Task_Destination = &quot;Flow2&quot;</td></tr><tr><td>Output_Ports</td><td>output</td><td>&quot;output&quot;</td></tr><tr><td>Output_Values</td><td>input</td><td>&quot;input&quot;</td></tr><tr><td>Output_Conditions</td><td>true</td><td>&quot;true&quot;</td></tr></table> <h2>ExpressionList3</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>/* Template to enter multiple RegEx lines*/\\n Result_A = MyRegExpression_A_or_None /* Expression 1 */\\n Result_B = MyRegExpression_B_or_None /* Expression 2 */\\n Result_C = MyRegExpression_C_or_None /* Expression 3 */ \\n/* Add as many RegEx lines are required */\\n</td><td>/* Template to enter multiple RegEx lines*/\\n Result_A = MyRegExpression_A_or_None /* Expression 1 */\\n Result_B = MyRegExpression_B_or_None /* Expression 2 */\\n Result_C = MyRegExpression_C_or_None /* Expression 3 */ \\n/* Add as many RegEx lines are required */\\n</td></tr><tr><td>Expression_List</td><td>/* Template to enter multiple RegEx lines*/\\ninput.A_Task_Name = &quot;Render&quot;\\ninput.A_Priority = 1</td><td>/* Template to enter multiple RegEx lines*/\\ninput.A_Task_Name = &quot;Render&quot;\\ninput.A_Priority = 1</td></tr><tr><td>Output_Ports</td><td>output</td><td>&quot;output&quot;</td></tr><tr><td>Output_Values</td><td>input</td><td>&quot;input&quot;</td></tr><tr><td>Output_Conditions</td><td>true</td><td>&quot;true&quot;</td></tr></table> <h2>Render</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Block_Name</td><td>Render_Mapper</td><td>&quot;Render_Mapper&quot;</td></tr><tr><td>Database_Lookup</td><td>None</td><td>&quot;None&quot;</td></tr><tr><td>Database_Expression</td><td>None /* Advanced Feature: can use for any DB_Fld_Name below with database name */</td><td>&quot;None /* Advanced Feature: can use for any DB_Fld_Name below with database name */&quot;</td></tr><tr><td>Task_Name</td><td>A_Task_Name</td><td>&quot;A_Task_Name&quot;</td></tr><tr><td>Task_Destination</td><td>Task_Destination</td><td>&quot;Task_Destination&quot;</td></tr><tr><td>Task_Instruction</td><td>A_Instruction</td><td>&quot;A_Instruction&quot;</td></tr><tr><td>Task_ID</td><td>3</td><td>&quot;3&quot;</td></tr><tr><td>Task_Priority</td><td>A_Priority</td><td>&quot;A_Priority&quot;</td></tr><tr><td>Task_Time</td><td>A_Time</td><td>&quot;A_Time&quot;</td></tr><tr><td>Task_Plot_ID</td><td>3</td><td>&quot;3&quot;</td></tr></table> <h2>TaskGenerator3</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Name</td><td>&quot;Task_3&quot;</td><td>&quot;Task_3&quot;</td></tr><tr><td>Mode_of_Operation</td><td>&quot;Field&quot; /* Field gets input, Random selects a Task, Loop is sequential */</td><td>&quot;Field&quot;</td></tr><tr><td>DEBUG</td><td>false /* To Debug Port */</td><td>false</td></tr><tr><td>_explanation</td><td>ProcessorGenerator-&gt;TaskGenerator</td><td>ProcessorGenerator-&gt;TaskGenerator</td></tr><tr><td>Sim_Time</td><td>Sim_Time</td><td>0.008</td></tr><tr><td>Instruction_Mix_File</td><td>Instruction_Mix_Table.txt</td><td>&quot;Instruction_Mix_Table.txt&quot;</td></tr><tr><td>My_Path</td><td>VS + &quot;/demo/Partitioning/SoC&quot;</td><td>&quot;C:\\VisualSim\\Tool\\VisualSim18_64\\VS_AR/demo/Partitioning/SoC&quot;</td></tr><tr><td>Read_My_Instruction_Mix_Table</td><td>&quot;Instruction_Mix_Table.txt&quot; /* Input file name */</td><td>&quot;Instruction_Mix_Table.txt&quot;</td></tr></table> <h2>ExpressionList2</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>/* Template to enter multiple RegEx lines*/\\n Result_A = MyRegExpression_A_or_None /* Expression 1 */\\n Result_B = MyRegExpression_B_or_None /* Expression 2 */\\n Result_C = MyRegExpression_C_or_None /* Expression 3 */ \\n/* Add as many RegEx lines are required */\\n</td><td>/* Template to enter multiple RegEx lines*/\\n Result_A = MyRegExpression_A_or_None /* Expression 1 */\\n Result_B = MyRegExpression_B_or_None /* Expression 2 */\\n Result_C = MyRegExpression_C_or_None /* Expression 3 */ \\n/* Add as many RegEx lines are required */\\n</td></tr><tr><td>Expression_List</td><td>/* Template to enter multiple RegEx lines*/\\ninput.A_Task_Name = &quot;Post_Proc&quot;\\ninput.A_Priority = 1\\ninput.Task_Destination = &quot;Architecture_1&quot; + &quot;.ARM72_&quot; + irand(1,4) + &quot;1&quot;</td><td>/* Template to enter multiple RegEx lines*/\\ninput.A_Task_Name = &quot;Post_Proc&quot;\\ninput.A_Priority = 1\\ninput.Task_Destination = &quot;Architecture_1&quot; + &quot;.ARM72_&quot; + irand(1,4) + &quot;1&quot;</td></tr><tr><td>Output_Ports</td><td>output</td><td>&quot;output&quot;</td></tr><tr><td>Output_Values</td><td>input</td><td>&quot;input&quot;</td></tr><tr><td>Output_Conditions</td><td>true</td><td>&quot;true&quot;</td></tr></table> <h2>ExpressionList</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>/* Template to enter multiple RegEx lines*/\\n Result_A = MyRegExpression_A_or_None /* Expression 1 */\\n Result_B = MyRegExpression_B_or_None /* Expression 2 */\\n Result_C = MyRegExpression_C_or_None /* Expression 3 */ \\n/* Add as many RegEx lines are required */\\n</td><td>/* Template to enter multiple RegEx lines*/\\n Result_A = MyRegExpression_A_or_None /* Expression 1 */\\n Result_B = MyRegExpression_B_or_None /* Expression 2 */\\n Result_C = MyRegExpression_C_or_None /* Expression 3 */ \\n/* Add as many RegEx lines are required */\\n</td></tr><tr><td>Expression_List</td><td>/* Template to enter multiple RegEx lines*/\\ninput.A_Task_Name = &quot;Decode&quot;\\ninput.A_Priority = 1\\ninput.A_Destination = &quot;Architecture_1&quot; + &quot;.ARM72_1&quot; + &quot;1&quot;</td><td>/* Template to enter multiple RegEx lines*/\\ninput.A_Task_Name = &quot;Decode&quot;\\ninput.A_Priority = 1\\ninput.A_Destination = &quot;Architecture_1&quot; + &quot;.ARM72_1&quot; + &quot;1&quot;</td></tr><tr><td>Output_Ports</td><td>output</td><td>&quot;output&quot;</td></tr><tr><td>Output_Values</td><td>input</td><td>&quot;input&quot;</td></tr><tr><td>Output_Conditions</td><td>true</td><td>&quot;true&quot;</td></tr></table> <h2>Post_Proc</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Block_Name</td><td>Post_Proc_Mapper</td><td>&quot;Post_Proc_Mapper&quot;</td></tr><tr><td>Database_Lookup</td><td>None</td><td>&quot;None&quot;</td></tr><tr><td>Database_Expression</td><td>None /* Advanced Feature: can use for any DB_Fld_Name below with database name */</td><td>&quot;None /* Advanced Feature: can use for any DB_Fld_Name below with database name */&quot;</td></tr><tr><td>Task_Name</td><td>A_Task_Name</td><td>&quot;A_Task_Name&quot;</td></tr><tr><td>Task_Destination</td><td>Task_Destination</td><td>&quot;Task_Destination&quot;</td></tr><tr><td>Task_Instruction</td><td>A_Instruction</td><td>&quot;A_Instruction&quot;</td></tr><tr><td>Task_ID</td><td>2</td><td>&quot;2&quot;</td></tr><tr><td>Task_Priority</td><td>A_Priority</td><td>&quot;A_Priority&quot;</td></tr><tr><td>Task_Time</td><td>A_Time</td><td>&quot;A_Time&quot;</td></tr><tr><td>Task_Plot_ID</td><td>2</td><td>&quot;2&quot;</td></tr></table> <h2>TaskGenerator2</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Name</td><td>&quot;Task_2&quot;</td><td>&quot;Task_2&quot;</td></tr><tr><td>Mode_of_Operation</td><td>&quot;Field&quot; /* Field gets input, Random selects a Task, Loop is sequential */</td><td>&quot;Field&quot;</td></tr><tr><td>DEBUG</td><td>false /* To Debug Port */</td><td>false</td></tr><tr><td>_explanation</td><td>ProcessorGenerator-&gt;TaskGenerator</td><td>ProcessorGenerator-&gt;TaskGenerator</td></tr><tr><td>Sim_Time</td><td>Sim_Time</td><td>0.008</td></tr><tr><td>Instruction_Mix_File</td><td>Instruction_Mix_Table.txt</td><td>&quot;Instruction_Mix_Table.txt&quot;</td></tr><tr><td>My_Path</td><td>VS + &quot;/demo/Partitioning/SoC&quot;</td><td>&quot;C:\\VisualSim\\Tool\\VisualSim18_64\\VS_AR/demo/Partitioning/SoC&quot;</td></tr><tr><td>Read_My_Instruction_Mix_Table</td><td>&quot;Instruction_Mix_Table.txt&quot; /* Input file name */</td><td>&quot;Instruction_Mix_Table.txt&quot;</td></tr></table> <h2>Decode</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Block_Name</td><td>Decode_Task</td><td>&quot;Decode_Task&quot;</td></tr><tr><td>Database_Lookup</td><td>None</td><td>&quot;None&quot;</td></tr><tr><td>Database_Expression</td><td>None /* Advanced Feature: can use for any DB_Fld_Name below with database name */</td><td>&quot;None /* Advanced Feature: can use for any DB_Fld_Name below with database name */&quot;</td></tr><tr><td>Task_Name</td><td>A_Task_Name</td><td>&quot;A_Task_Name&quot;</td></tr><tr><td>Task_Destination</td><td>A_Destination</td><td>&quot;A_Destination&quot;</td></tr><tr><td>Task_Instruction</td><td>A_Instruction</td><td>&quot;A_Instruction&quot;</td></tr><tr><td>Task_ID</td><td>1</td><td>&quot;1&quot;</td></tr><tr><td>Task_Priority</td><td>A_Priority</td><td>&quot;A_Priority&quot;</td></tr><tr><td>Task_Time</td><td>A_Time</td><td>&quot;A_Time&quot;</td></tr><tr><td>Task_Plot_ID</td><td>1</td><td>&quot;1&quot;</td></tr></table> <h2>TaskGenerator</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Name</td><td>&quot;Task_1&quot;</td><td>&quot;Task_1&quot;</td></tr><tr><td>Mode_of_Operation</td><td>&quot;Field&quot; /* Field gets input, Random selects a Task, Loop is sequential */</td><td>&quot;Field&quot;</td></tr><tr><td>DEBUG</td><td>false /* To Debug Port */</td><td>false</td></tr><tr><td>_explanation</td><td>ProcessorGenerator-&gt;TaskGenerator</td><td>ProcessorGenerator-&gt;TaskGenerator</td></tr><tr><td>Sim_Time</td><td>Sim_Time</td><td>0.008</td></tr><tr><td>Instruction_Mix_File</td><td>Instruction_Mix_Table.txt</td><td>&quot;Instruction_Mix_Table.txt&quot;</td></tr><tr><td>My_Path</td><td>VS + &quot;/demo/Partitioning/SoC&quot;</td><td>&quot;C:\\VisualSim\\Tool\\VisualSim18_64\\VS_AR/demo/Partitioning/SoC&quot;</td></tr><tr><td>Read_My_Instruction_Mix_Table</td><td>&quot;Instruction_Mix_Table.txt&quot; /* Input file name */</td><td>&quot;Instruction_Mix_Table.txt&quot;</td></tr></table> <h2>Traffic</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Data_Structure_Name</td><td>&quot;Processor_DS&quot;</td><td>&quot;Processor_DS&quot;</td></tr><tr><td>Start_Time</td><td>1.0e-9</td><td>1.0E-9</td></tr><tr><td>Value_1</td><td>1.0E-03</td><td>1.0E-3</td></tr><tr><td>Value_2</td><td>2.0</td><td>2.0</td></tr><tr><td>Random_Seed</td><td>123457L</td><td>123457L</td></tr><tr><td>Time_Distribution</td><td>Fixed (Value_1)</td><td>Fixed (Value_1)</td></tr></table> <h2>Serial_Switch</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Architecture_Name</td><td>&quot;Architecture_1&quot;</td><td>&quot;Architecture_1&quot;</td></tr><tr><td>Switch_Name</td><td>&quot;BB_Switch&quot;</td><td>&quot;BB_Switch&quot;</td></tr><tr><td>Speed_Mhz</td><td>Bus_Speed</td><td>2000.0</td></tr><tr><td>Channel_Field_Name</td><td>&quot;INDEX&quot;</td><td>&quot;INDEX&quot;</td></tr><tr><td>Overhead_Cycles</td><td>1</td><td>1</td></tr><tr><td>Sim_Time</td><td>Sim_Time</td><td>0.008</td></tr><tr><td>Number_PHY_Lanes</td><td>16</td><td>16</td></tr><tr><td>Power_Manager_Name</td><td>&quot;Manager_Top&quot;</td><td>&quot;Manager_Top&quot;</td></tr><tr><td>Switch_Buffer</td><td>5</td><td>5</td></tr><tr><td>_explanation</td><td>Hardware_Modeling-&gt;Bus_Switch_Ctrl-&gt;Serial_Switch</td><td>Hardware_Modeling-&gt;Bus_Switch_Ctrl-&gt;Serial_Switch</td></tr><tr><td>Custom_Algorithm_File</td><td>&quot;none&quot;</td><td>&quot;none&quot;</td></tr><tr><td>Channel_Mbps</td><td>{} /* Empty - No BW Allocation */</td><td>{}</td></tr><tr><td>Enable_Messages</td><td>false</td><td>false</td></tr><tr><td>Cut_Through_Mode</td><td>true</td><td>true</td></tr></table> <h2>ARM_CPU</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>Processor_Speed</td><td>Processor_Speed</td><td>800.0</td></tr><tr><td>I_Cache_Size</td><td>I_Cache_Size</td><td>8</td></tr><tr><td>D_Cache_Size</td><td>D_Cache_Size</td><td>16</td></tr><tr><td>Bus_Speed</td><td>Bus_Speed</td><td>2000.0</td></tr><tr><td>Sim_Time</td><td>Sim_Time</td><td>0.008</td></tr><tr><td>Mem_Name</td><td>&quot;DRAM_Instr1&quot;</td><td>&quot;DRAM_Instr1&quot;</td></tr><tr><td>Cluster_Name</td><td>&quot;1&quot;</td><td>&quot;1&quot;</td></tr><tr><td>Mem_Speed</td><td>Mem_Speed</td><td>2000.0</td></tr><tr><td>Proc_Pwr_1</td><td>&quot;Architecture_1_&quot; + &quot;ARM72_1&quot;+Cluster_Name</td><td>&quot;Architecture_1_ARM72_11&quot;</td></tr><tr><td>Proc_Pwr_2</td><td>&quot;Architecture_1_&quot; + &quot;ARM72_2&quot;+Cluster_Name</td><td>&quot;Architecture_1_ARM72_21&quot;</td></tr><tr><td>Proc_Pwr_3</td><td>&quot;Architecture_1_&quot; + &quot;ARM72_3&quot;+Cluster_Name</td><td>&quot;Architecture_1_ARM72_31&quot;</td></tr><tr><td>Proc_Pwr_4</td><td>&quot;Architecture_1_&quot; + &quot;ARM72_4&quot;+Cluster_Name</td><td>&quot;Architecture_1_ARM72_41&quot;</td></tr><tr><td>Proc_Pwr_D1</td><td>&quot;Architecture_1_&quot; + &quot;ARM72_Denver1&quot;+Cluster_Name</td><td>&quot;Architecture_1_ARM72_Denver11&quot;</td></tr><tr><td>Proc_Pwr_D2</td><td>&quot;Architecture_1_&quot; + &quot;ARM72_Denver2&quot;+Cluster_Name</td><td>&quot;Architecture_1_ARM72_Denver21&quot;</td></tr><tr><td>AXI_RD_Name1</td><td>&quot;STR_&quot; + &quot;AXI1&quot; + Cluster_Name+ &quot;_Rd_Data_Channel&quot;</td><td>&quot;STR_AXI11_Rd_Data_Channel&quot;</td></tr><tr><td>AXI_WR_Name1</td><td>&quot;STR_&quot; + &quot;AXI1&quot; + Cluster_Name + &quot;_Wr_Data_Channel&quot;</td><td>&quot;STR_AXI11_Wr_Data_Channel&quot;</td></tr><tr><td>AXI_RD_Name2</td><td>&quot;STR_&quot; + &quot;AXI2&quot; + Cluster_Name+ &quot;_Rd_Data_Channel&quot;</td><td>&quot;STR_AXI21_Rd_Data_Channel&quot;</td></tr><tr><td>AXI_WR_Name2</td><td>&quot;STR_&quot; + &quot;AXI2&quot; + Cluster_Name + &quot;_Wr_Data_Channel&quot;</td><td>&quot;STR_AXI21_Wr_Data_Channel&quot;</td></tr><tr><td>AXI_RD_Name3</td><td>&quot;STR_&quot; + &quot;AXI3&quot; + Cluster_Name+ &quot;_Rd_Data_Channel&quot;</td><td>&quot;STR_AXI31_Rd_Data_Channel&quot;</td></tr><tr><td>AXI_WR_Name3</td><td>&quot;STR_&quot; + &quot;AXI3&quot; + Cluster_Name + &quot;_Wr_Data_Channel&quot;</td><td>&quot;STR_AXI31_Wr_Data_Channel&quot;</td></tr><tr><td>AXI_RD_Name4</td><td>&quot;STR_&quot; + &quot;AXI4&quot; + Cluster_Name+ &quot;_Rd_Data_Channel&quot;</td><td>&quot;STR_AXI41_Rd_Data_Channel&quot;</td></tr><tr><td>AXI_WR_Name4</td><td>&quot;STR_&quot; + &quot;AXI4&quot; + Cluster_Name + &quot;_Wr_Data_Channel&quot;</td><td>&quot;STR_AXI41_Wr_Data_Channel&quot;</td></tr><tr><td>Mem_Pwr</td><td>&quot;Architecture_1_&quot; + Mem_Name</td><td>&quot;Architecture_1_DRAM_Instr1&quot;</td></tr></table> <h2>ARM9_Instruction_Set</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>This is the Instruction Set for ARM9 : Reference ARM TRM manual. \\n</td><td>This is the Instruction Set for ARM9 : Reference ARM TRM manual. \\n</td></tr><tr><td>Instruction_Set_Name</td><td>&quot;ARM_INSTR&quot;</td><td>&quot;ARM_INSTR&quot;</td></tr><tr><td>_explanation</td><td>ProcessorGenerator-&gt;Instruction_Set</td><td>ProcessorGenerator-&gt;Instruction_Set</td></tr><tr><td>Instruction_Set_Text</td><td>/* Instruction Set : Reference ARM TRM manual. */\\n\\n Mnew Ra Rb Rc Rd Re Rf Rg Rh; /* Label */\\n ARM EXEC ; /* one execution unit */\\n EXEC INT_1 ; /* ARM execution unit */\\n\\nbegin INT_1 ;\\n MV_MOV 1 4 ; /* group MOVE */\\n MV_MVN 1 4 ;\\n MV_MRS 1 2 ;\\n MV_MSR 3 ;\\n\\n ART_ADD 1 4 ; /* group ARITHMETIC */\\n ART_ADC 1 4 ;\\n ART_SUB 1 4 ;\\n ART_SBC 1 4 ;\\n ART_RSB 1 4 ;\\n ART_RSC 1 4 ;\\n ART_MUL 2 3 ;\\n ART_MLA 2 3 ;\\n ART_MULS 4 ;\\n ART_MLAS 4 ;\\n ART_UMULL 3 4 ;\\n ART_UMLAL 3 4 ;\\n ART_SMULL 3 4 ;\\n ART_SMLAL 3 4 ;\\n ART_UMULLS 5 ;\\n ART_UMLALS 5 ;\\n ART_SMULLS 5 ;\\n ART_SMLALS 5 ;\\n ART_CMP 1 4 ;\\n ART_CMN 1 4 ;\\n ART_QADD 1 2 ;\\n ART_QSUB 1 2 ;\\n ART_SMULXY 1 ;\\n ART_SMULAXY 2 ;\\n ART_SMULWX 1 ;\\n ART_SMULAWX 2 ;\\n ART_SMULALX 2 3 ;\\n ART_CLZ 1 ;\\n\\n LGL_TST 1 4 ; /* group LOGICAL */\\n LGL_TEQ 1 4 ;\\n LGL_AND 1 4 ;\\n LGL_EOR 1 4 ;\\n LGL_ORR 1 4 ;\\n LGL_BIC 1 4 ;\\n\\n *BR_B 3 ; /* group LOGICAL */\\n BR_BL 3 ; \\n BR_BX 3 ;\\n BR_BLX 3 ;\\n\\n LD_LDR 1 5 ; /* group LOAD */\\n LD_LDRT 1 5 ; \\n LD_LDRB 1 5 ; \\n LD_LDRBT 1 5 ; \\n LD_LDRSB 1 5 ; \\n LD_LDRH 1 5 ; \\n LD_LDRSH 1 5 ; \\n LD_LDM_PC 5 ; \\n LD_LDM 1 12 ; /* number of registers */\\n\\n STR_STR 1 ; /* group STORE */\\n STR_STRT 1 ; \\n STR_STRB 1 ; \\n STR_STRBT 1 ; \\n STR_STRH 1 ;\t\\n STR_STM_PC 1 2 ;\\n STR_STM 1 12 ; /* number of registers */\\n\\n MISC_SWP 3 ; /* group MISCELLANEOUS */\\n MISC_SWI 3 ; \\n MISC_BKPT 3 ; \\n\\nend INT_1 ;</td><td>/* Instruction Set : Reference ARM TRM manual. */\\n\\n Mnew Ra Rb Rc Rd Re Rf Rg Rh; /* Label */\\n ARM EXEC ; /* one execution unit */\\n EXEC INT_1 ; /* ARM execution unit */\\n\\nbegin INT_1 ;\\n MV_MOV 1 4 ; /* group MOVE */\\n MV_MVN 1 4 ;\\n MV_MRS 1 2 ;\\n MV_MSR 3 ;\\n\\n ART_ADD 1 4 ; /* group ARITHMETIC */\\n ART_ADC 1 4 ;\\n ART_SUB 1 4 ;\\n ART_SBC 1 4 ;\\n ART_RSB 1 4 ;\\n ART_RSC 1 4 ;\\n ART_MUL 2 3 ;\\n ART_MLA 2 3 ;\\n ART_MULS 4 ;\\n ART_MLAS 4 ;\\n ART_UMULL 3 4 ;\\n ART_UMLAL 3 4 ;\\n ART_SMULL 3 4 ;\\n ART_SMLAL 3 4 ;\\n ART_UMULLS 5 ;\\n ART_UMLALS 5 ;\\n ART_SMULLS 5 ;\\n ART_SMLALS 5 ;\\n ART_CMP 1 4 ;\\n ART_CMN 1 4 ;\\n ART_QADD 1 2 ;\\n ART_QSUB 1 2 ;\\n ART_SMULXY 1 ;\\n ART_SMULAXY 2 ;\\n ART_SMULWX 1 ;\\n ART_SMULAWX 2 ;\\n ART_SMULALX 2 3 ;\\n ART_CLZ 1 ;\\n\\n LGL_TST 1 4 ; /* group LOGICAL */\\n LGL_TEQ 1 4 ;\\n LGL_AND 1 4 ;\\n LGL_EOR 1 4 ;\\n LGL_ORR 1 4 ;\\n LGL_BIC 1 4 ;\\n\\n *BR_B 3 ; /* group LOGICAL */\\n BR_BL 3 ; \\n BR_BX 3 ;\\n BR_BLX 3 ;\\n\\n LD_LDR 1 5 ; /* group LOAD */\\n LD_LDRT 1 5 ; \\n LD_LDRB 1 5 ; \\n LD_LDRBT 1 5 ; \\n LD_LDRSB 1 5 ; \\n LD_LDRH 1 5 ; \\n LD_LDRSH 1 5 ; \\n LD_LDM_PC 5 ; \\n LD_LDM 1 12 ; /* number of registers */\\n\\n STR_STR 1 ; /* group STORE */\\n STR_STRT 1 ; \\n STR_STRB 1 ; \\n STR_STRBT 1 ; \\n STR_STRH 1 ;\t\\n STR_STM_PC 1 2 ;\\n STR_STM 1 12 ; /* number of registers */\\n\\n MISC_SWP 3 ; /* group MISCELLANEOUS */\\n MISC_SWI 3 ; \\n MISC_BKPT 3 ; \\n\\nend INT_1 ;</td></tr><tr><td>Record_Set_Name</td><td>&quot;Record_Set_Name&quot;</td><td>&quot;Record_Set_Name&quot;</td></tr><tr><td>Memory_Type</td><td>Global</td><td>Global</td></tr></table>

This is the skeleton of a Autonomous Driving application running on a Drive-PX platform from NVidia. There are two types of configurations:

  • 6 radars delivering up to 15 targets each every 40ms cycle together with a front camera sending up to 15 objects every 40ms. All this data comes over the CAN (FD) busses.
  • Up to 6 cameras, one with 8Mpixels and the others with 1.5 Mpixels delivering the raw data to the Drive-PX. In addition 4 radars with up to 15 targets with a cycle time of 40ms.

This model evaluates different SW architectures. We need to measure memory usage, processor utilization, latency and throughput on the processors and the communication links depending on the distribution of tasks across the processors. Of course, the effects of errors will enlighten us on the robustness of a given architecture.
