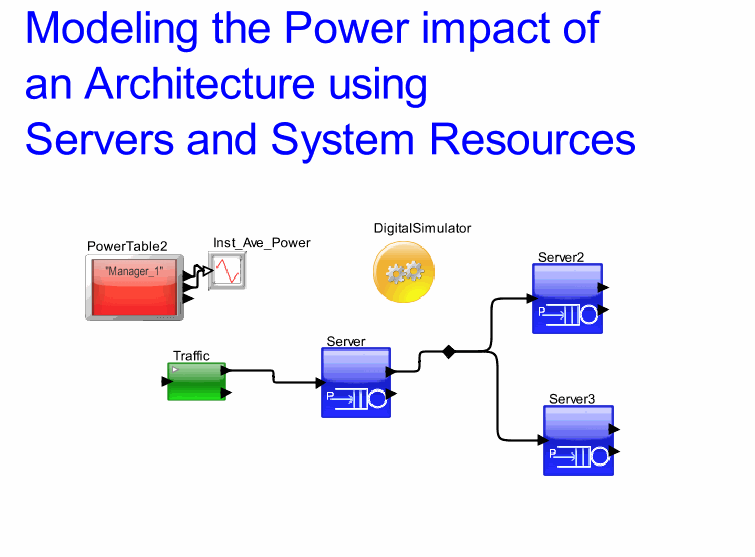

This model introduces the user to the Power Table in VisualSim and the link between the SystemResource and Server with the Power Table. You can view the list of standard states in the Power table for the two different types of resources. Also, you can view how the instant power changes based on the activity in the devices In addition, the model can be customised for sub-set implementation such as just the scheduler. The model has a database that maintains the tasks and the associated mapping to a time slot. The model has a timing deadline assertion to check whether the tasks exceed the slot time.
