Stochastic and cycle-accurate cahce with snoop
Cache is a small, fast computer memory for keeping copies of data from a larger, slower memory. The trade-off between memory speed and size is pretty universal. Without cache memory, every time the CPU requests for a data, it would send the request to the main memory which would then be sent back across the system bus to the CPU. This is a slow process. The idea of introducing cache is that this extremely fast memory would store data that is frequently accessed and if possible, the data that is around it. This is to achieve the quickest possible response time to the CPU. One of the key goals in system design is to ensure the processor is not slowed down by the storage devices it works with. Slowdowns mean wasted processor cycles, where the CPU can’t do anything because it is sitting and waiting for the information it needs.

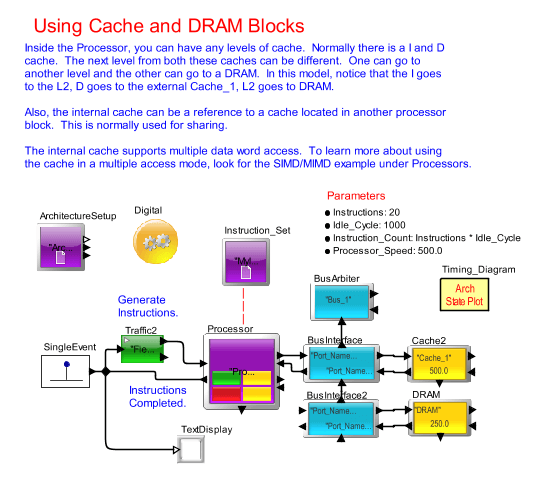

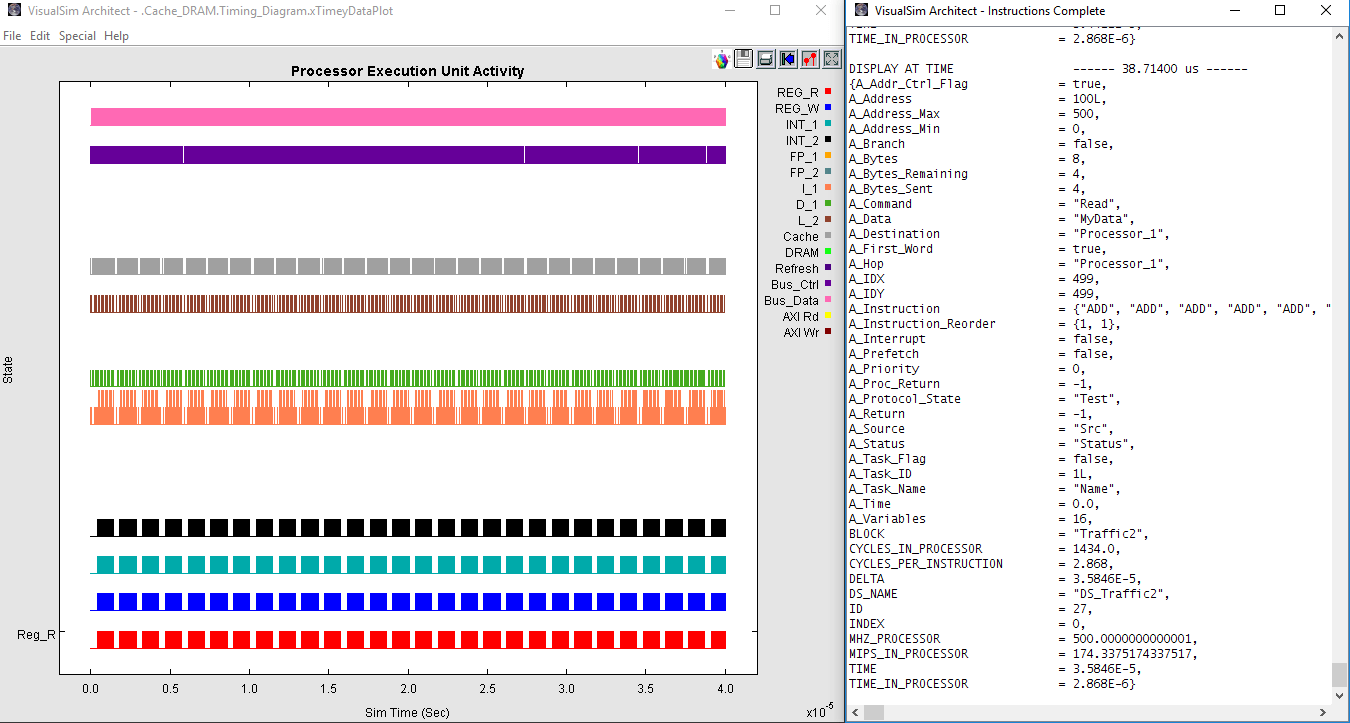

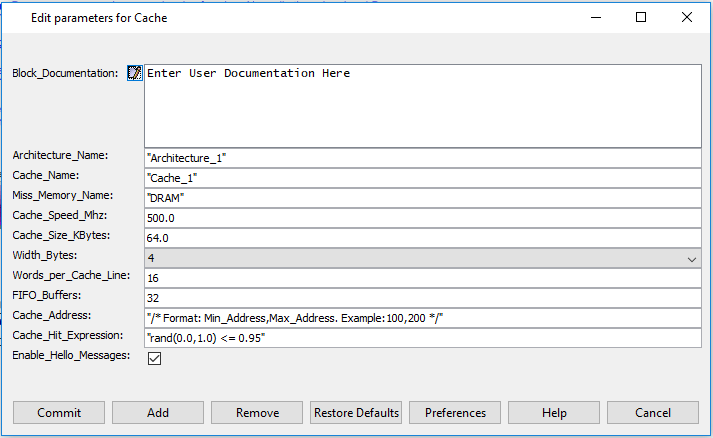

VisualSim models can incorporate the cache blocks in the definition of the hardware architecture. The cache block is used to model theL1 (I- and D-cache), L2 and L3 cache. VisualSim has two cache abstraction blocks: stochastic cache and cycle accurate cache. In addition, the processor block also has functionality to describe the caches that are within the core. The cache can be linked to create the hierarchy and can support TLB, TBU/TCU and System Memory Management Unit. The differences between the three types of blocks are the level of detail on the cache input, addressing, generating a miss, number of prefetch lines, associativity and cache algorithm such as the MESI protocol. The stochastic block counts the number of accesses and generates a miss at the end of a cache line. The hit-miss parameter can also generate a miss for any cache access. The cycle-accurate cache maintains the content at each address position. Requests access a specific address and Write will trigger the replacement policies.
