Ehernet traffic

Generating Ethernet traffic based on traffic profile

Stochastic Modeling

  • Distribution-based traffic
    Demonstrates the use of the Traffic block to generate transactions based on multiple districtions
  • Ethernet Traffic
    Generating Ethernet traffic based on traffic profile
  • Image Traffic
    Generate images in the form of a Matrix for processing
  • SysML
    Mapping SysML to a performance analysis model for Model-based System Simulation
  • Queue
    Use of the Queue block to model the buffer management, ingress/egress queues, FIFO and SRAM in FPGAs
  • Server
    Use of the Server block to model time-consumption by system resources. Resources can include hardware, RTOS, middleware, networks and interrupts
  • SystemResource
    Mapping an MPEG use case to SystemResources for performance and power analysis
  • Quantity-Shared
    Modeling consumption of quantity which can be memory addresses, semaphore pool and slots avaialable in a parking garage
  • Channel
    Use of the Channel block to model communication, wireless and interface channels
  • Using Spreadsheet

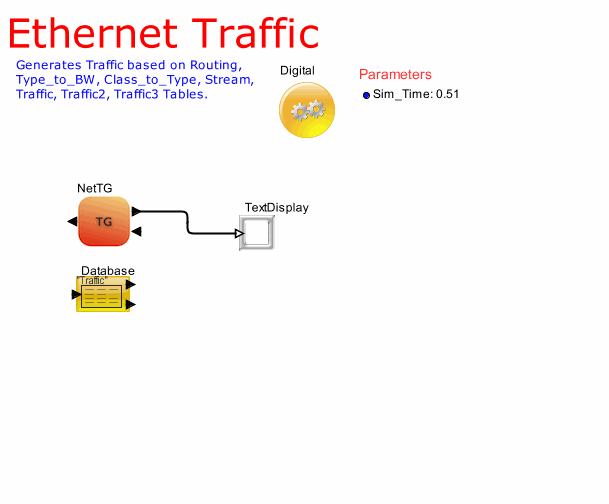

Ethernet_Traffic

Browsable image of the model.

  • To download OpenWebStart click on the links -
    Windows- Compatibility:Windows 10 or higher (*)
    macOS - Compatibility:macOS 10.15 (Catalina) or higher (*)
    Linux - Compatibility:Ubuntu 18.04 LTS or higher (*)
  • For an executable version,
  • Mouse over the icons to view parameters. Click on hierarchy and plotters to reveal content (if provided).
  • To simulate, click on Launch button, open downloaded file and click Run on the Java Security Page.
Ethernet_Trafficmodel <h2>Database</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Mac_ID :: Mac_ID Address Mbps :: Data rate\\nSize_Bytes :: 1500 Start_Time :: 0.0 \\nStop_Time :: 1.0E-03 Protocol :: TCP_IP or UDP</td><td>Mac_ID :: Mac_ID Address Mbps :: Data rate\\nSize_Bytes :: 1500 Start_Time :: 0.0 \\nStop_Time :: 1.0E-03 Protocol :: TCP_IP or UDP</td></tr><tr><td>Linking_Name</td><td>&quot;Traffic&quot;</td><td>&quot;Traffic&quot;</td></tr><tr><td>fileOrURL</td><td>&nbsp;</td><td>&quot;&quot;</td></tr><tr><td>Data_Structure_Text</td><td>/* Text Template or File Path. \\n First row contains Field Names. */\\nID Identifier Task_Source Task_Destination Mbps Task_Size Start_Time Stop_Time Protocol Type ; \\n 1 &quot;00:01&quot; Node_1 Node_5 2.0 128 10.0E-03 0.5 UDP 1 ; \\n 2 &quot;00:02&quot; Node_1 Node_5 2.0 512 10.0E-03 0.5 UDP 1 ; \\n 3 &quot;00:03&quot; Node_1 Node_5 5.0 1024 10.0E-03 0.5 UDP 1 ; \\n 4 &quot;00:04&quot; Node_1 Node_5 3.0 64 10.0E-03 0.5 UDP 1 ; </td><td>/* Text Template or File Path. \\n First row contains Field Names. */\\nID Identifier Task_Source Task_Destination Mbps Task_Size Start_Time Stop_Time Protocol Type ; \\n 1 &quot;00:01&quot; Node_1 Node_5 2.0 128 10.0E-03 0.5 UDP 1 ; \\n 2 &quot;00:02&quot; Node_1 Node_5 2.0 512 10.0E-03 0.5 UDP 1 ; \\n 3 &quot;00:03&quot; Node_1 Node_5 5.0 1024 10.0E-03 0.5 UDP 1 ; \\n 4 &quot;00:04&quot; Node_1 Node_5 3.0 64 10.0E-03 0.5 UDP 1 ; </td></tr><tr><td>Input_Fields</td><td>&quot;ID&quot;</td><td>&quot;ID&quot;</td></tr><tr><td>Lookup_Fields</td><td>&quot;ID&quot;</td><td>&quot;ID&quot;</td></tr><tr><td>Output_Expression</td><td>&quot;output = match&quot; /* FORMAT output = match.fieldb */</td><td>&quot;output = match&quot;</td></tr><tr><td>Mode</td><td>Read</td><td>Read</td></tr></table> <h2>TextDisplay</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>Block_Documentation</td><td>Enter User Documentation Here</td><td>Enter User Documentation Here</td></tr><tr><td>rowsDisplayed</td><td>10</td><td>10</td></tr><tr><td>columnsDisplayed</td><td>40</td><td>40</td></tr><tr><td>suppressBlankLines</td><td>false</td><td>false</td></tr><tr><td>title</td><td>&nbsp;</td><td>&nbsp;</td></tr><tr><td>ViewText</td><td>true</td><td>true</td></tr><tr><td>saveText</td><td>false</td><td>false</td></tr><tr><td>fileName</td><td>Enter Filename to save text</td><td>&quot;Enter Filename to save text&quot;</td></tr><tr><td>Append_Time</td><td>true</td><td>true</td></tr></table> <h2>NetTG</h2><table border="1"><tr><td><b>Parameter</b></td><td><b>Expression</b></td><td><b>Value</b></td></tr><tr><td>_explanation</td><td>Interfaces and Buses-&gt;Audio Video Bridging-&gt;AVB_Traffic</td><td>Interfaces and Buses-&gt;Audio Video Bridging-&gt;AVB_Traffic</td></tr><tr><td>Traffic_Table</td><td>&quot;Traffic&quot;</td><td>&quot;Traffic&quot;</td></tr></table>

This is a Ethernet Traffic Generator block. This block can be used to generate traffic for network model including AVB, Ethernet and AFDX. This block requires an associated Traffic Table block and can generate multiple concurrent traffic streams for a fixed time duration. Each row (traffic stream) can be associated with a different Node. On the output port, a OUT block can be added with the Task_Source as the Destination field. Each Node can have a IN block with Task_Source name. The key fields utilized are the Task_Size, Task_Source, Task_Destination, Task_Hop, Task_Trace, Start_Time, Stop_Time, Mbps, Task_Rate, Identifier, Network_Message, Network_Message_Type, Protocol and Type.
