Messaging
Experiment with messaging schemes. Request to send message and receiver responds if buffer is available
Fragmentation/Assembly
Fragment the incoming packet and assemble at the destination

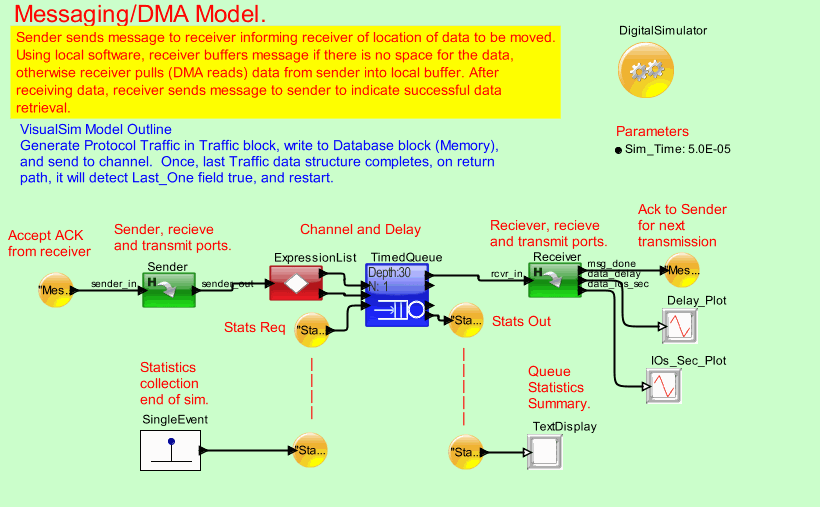

Message_DMA

Browsable image of the model.

For an executable version,
Mouse over the icons to view parameters. Click on hierarchy and plotters to reveal content (if provided).
To simulate, click on Launch button, open downloaded file and click Run on the Java Security Page.

http://support.microsoft.com/gp/howtoscript

Sender sends message to receiver informing receiver of location of data to be moved. Using local software, receiver buffers message if there is no space for the data, otherwise receiver pulls (DMA reads) data from sender into local buffer. After receiving data, receiver sends message to sender to indicate successful data retrieval.

VisualSim Model Outline
Generate Protocol Traffic in Traffic block, write to Database block (Memory), and send to channel. Once, last Traffic data structure completes, on return path, it will detect Last_One field true, and restart.
