VisualSim Ethernet Audio Video Bridging Library enables designers to accurately design Ethernet Audio Video Bridging (AVB) networks and products working with AVB to meet Quality-of-Service, reliability and power requirements. The use of this library in conjunction with other VisualSim Libraries accelerates the design and testing of AVB-connected products and networks. The AVB library can be used in the design of automotive application, network ICs, professional video equipment and network for concert halls and studios.
This Ethernet AVB library is fully integrated with the VisualSim automotive network library and the VisualSim hardware architecture library to model, simulate and design complete systems. In addition to the Ethernet and AVB network, the system can contain other networks such as CAN and FlexRay, sensors, ECU, hardware accelerators, display units, video processors, and audio equipment.

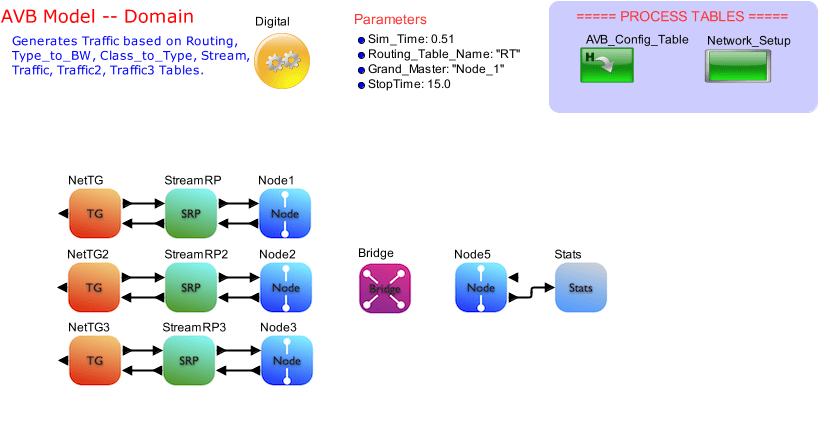

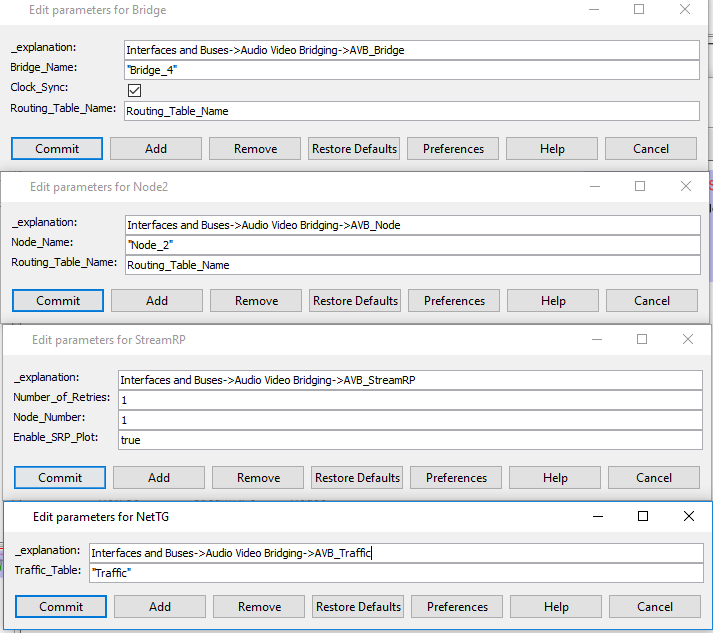

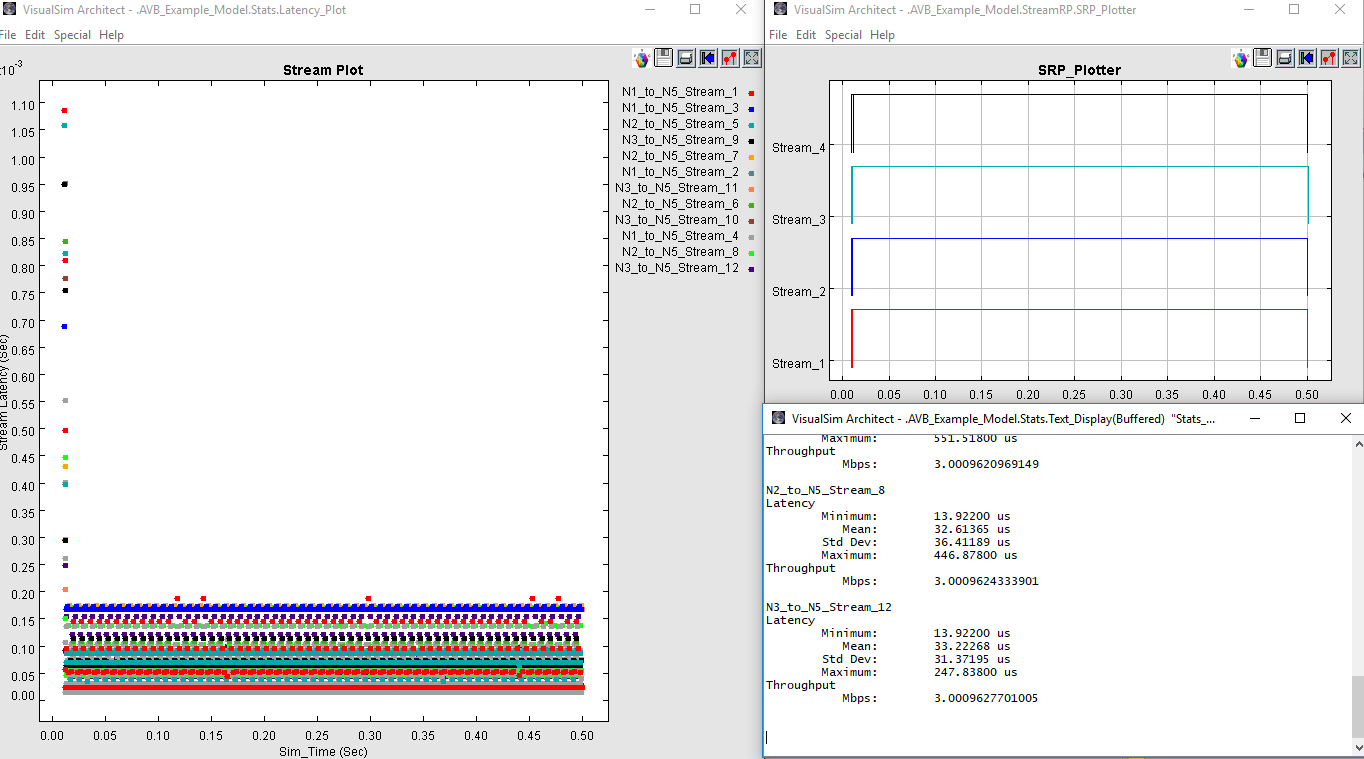

This new Ethernet AVB library enables system designers to quickly construct models of hardware system that operate on AVB over Ethernet and network using AVB protocol. The engineers can use the library components to create traffic stimulus to emulate sensors, and network traffic patterns. Pre-built parameters values can be modified by the users to experiment with different traffic inputs, traffic shaping algorithms, reservation quantities and hardware attributes to evaluate the impact on latency and throughput. The Ethernet AVB library consists of AVB traffic generators, talkers, listeners, stream reservation protocol, registration, traffic shaping and clock synchronization. The pre-built statistics includes latency plots for each stream, histograms of the latency distribution, statistics of the throughput and an extensive tracing of registration, reservation, data transfer, de-registration, and error reporting. A major invention of this library is that networks can be constructed by simply configuring spreadsheets and tables.
