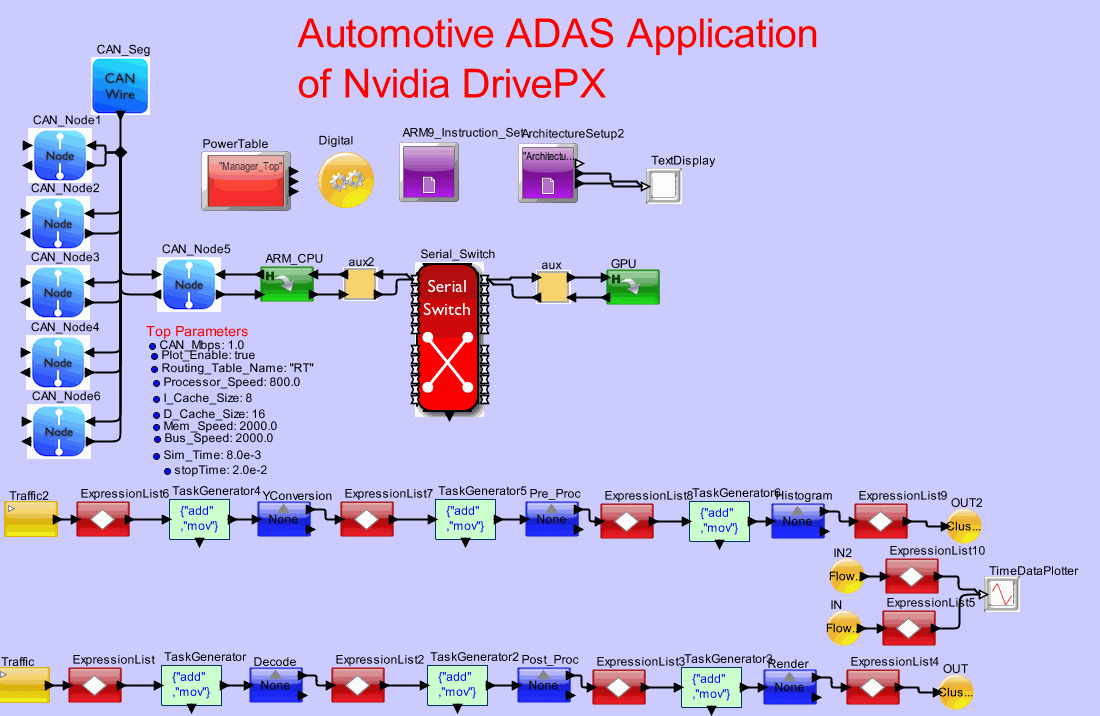

This is the skeleton of a Autonomous Driving application running on a Drive-PX platform from NVidia. There are two types of configurations:
- 6 radars delivering up to 15 targets each every 40ms cycle together with a front camera sending up to 15 objects every 40ms. All this data comes over the CAN (FD) busses.
- Up to 6 cameras, one with 8Mpixels and the others with 1.5 Mpixels delivering the raw data to the Drive-PX. In addition 4 radars with up to 15 targets with a cycle time of 40ms.
This model evaluates different SW architectures. We need to measure memory usage, processor utilization, latency and throughput on the processors and the communication links depending on the distribution of tasks across the processors. Of course, the effects of errors will enlighten us on the robustness of a given architecture.
